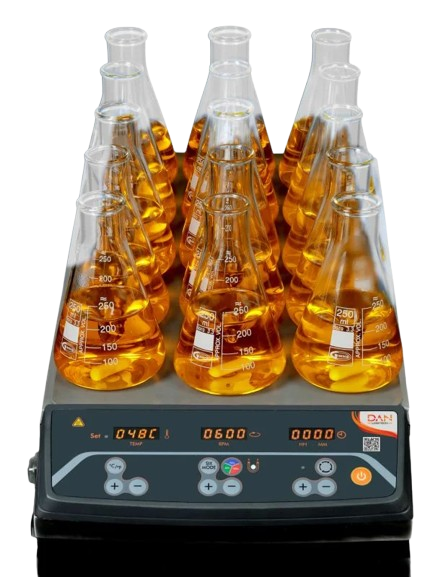

The 15-Position Digital Magnetic Stirrer is a precision-engineered, high-capacity stirring platform designed for simultaneous mixing of up to 15 individual samples in parallel. Ideal for pharmaceutical labs, chemical synthesis, microbiology, and sample preparation, this unit significantly increases productivity while maintaining uniform stirring performance across all positions. Each stirring point is powered by synchronized brushless DC motors, ensuring consistent speed, low noise, and long operational life. The durable chemical-resistant surface (typically stainless steel or ceramic-coated) is easy to clean and can accommodate a variety of vessel sizes such as beakers, flasks, or vials. The digital control panel allows precise adjustment of stirring speed (typically 100–1500 RPM) and time, with a clear LCD or LED display showing speed, time, and status indicators. Many models also include individual or grouped zone control, allowing selective stirring across different channels.
Features of 15-Position Digital Magnetic Stirrer
-
15 Simultaneous Stirring Positions – Efficiently stirs multiple samples at once for high-throughput workflows.
-
Digital Speed Control – Precise, synchronized speed adjustment for uniform mixing across all positions.
-
Wide Speed Range – Adjustable stirring speed (typically 100–1500 RPM).
-
Chemical-Resistant Surface – Durable, easy-to-clean top plate ideal for lab environments.
-
Individual Magnetic Drives – Ensures even and consistent stirring performance at each position.
-
User-Friendly Digital Display – Clear LED or LCD display for monitoring and control.
-
Quiet Operation – Low-noise design suitable for long-term use.
-
Compact & Efficient Design – Saves space while increasing sample processing capability.
-
Overheat Protection – Built-in safety feature for secure and reliable operation.
- Robust Metallic Construction
- Suitable for continuous unsupervised operation
- Designed for synchronous heating and stirring
- The magnetic coil motorless technology provides noiseless and consistent stirring on all positions
- Homogeneous temperature distribution across the heating plate
- Hot top warning indication
- Timer function
- Adjustable reverse operation for stirring
- Stirring speed remains constant, even when load changes
- SPC-mode for a low self-warming of the surface
- Multiple opening modes selection
- Error codes display
- Continuous stir modes possible
- Can be operated with Labs-connect App over Wifi/USB Controls
Technical Specification:
Set-up plate material | : Aluminium |
Number of stirring positions | : 15 |
Stirring position distance | : 90mm |
Speed Range | : 0 – 1000 rpm |
Speed Control | : 10 RPM Steps |
Stirring quantity max.H2O | : 6L (400ml x 15) |
Silicon Mat | : Yes |
Stirring bar length max. | : 30mm x 8mm |
Heating temperature range | : Room temp. – 120°C |
Control display | : LED |
Input Type | : Key Button |
Adjustable safety circuit min. | : 50°C |
Adjustable safety circuit max. | : 130°C |
Timer range | : 00:01 to 99:59 [Hour: Minute] |
Set-up plate dimensions | : 274x504mm |
Dimensions (W x H x D) | : 281x81x609mm |
Weight | : 10.6 KG (approx) |
Permissible ambient temperature | : 5 – 40°C |
Permissible relative humidity | : 80% |
Protection class according to DIN EN 60529 | : IP40 |
Accessories
- (15) Magnetic Stirring bar 30 mm x 8 mm
