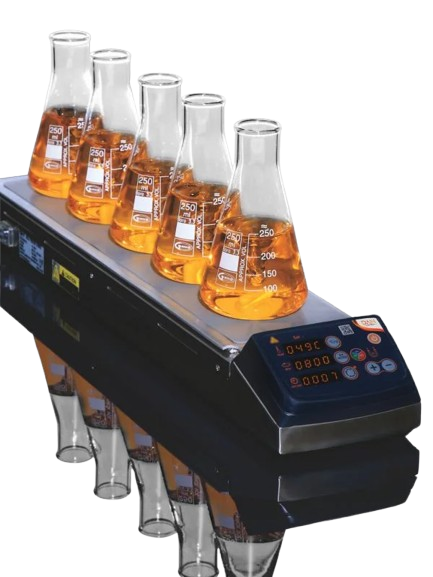

The 5-Position Digital Magnetic Stirrer with Heater is a high-performance lab instrument designed to simultaneously heat and stir up to five samples with independent or synchronized control. This device combines powerful magnetic stirring with accurate digital temperature regulation, making it ideal for chemical synthesis, microbiology, sample digestion, and reagent preparation. Each stirring position is equipped with an integrated heating element and magnetic drive, allowing for uniform temperature distribution and consistent agitation across all vessels. The durable ceramic or stainless steel top plate ensures high chemical resistance and even heat conduction. The digital control interface provides precise adjustment of speed and temperature, typically via a touch keypad or rotary knob, with real-time feedback on a backlit LCD/LED display. Built-in safety mechanisms protect samples and operators by regulating overheating, short circuits, and motor overload.
Features of 5-Position Digital Magnetic Stirrer with Heater
- Robust Metallic Construction
- Designed for synchronous heating and stirring
- Suitable for continuous unsupervised operation
- Silicone mat for anti-skid.
- The magnetic coil motorless technology provides noiseless and consistent stirring on all positions
- Homogeneous temperature distribution across the heating plate
- Hot top warning indication
- Timer function
- Multiple modes with mode selection key
- Constant stirring speeds even with viscosity changes
- SPC-mode for a low self-warming of the surface
- Error codes display
Technical Specification:
| Set-up plate material | : Aluminium |
| Number of stirring positions | : 5 |
| Stirring position distance | : 90mm |
| Speed Range |
: 0 – 1000 rpm |
| Stirring quantity max. per stirring position (H2O) | : 2L |
| Silicone Mat | : Yes |
| Stirring bar length max. | : 30mm x 8mm |
| Heating temperature range | : Room temp. – 120°C |
| Input Type | : Key Button |
| Set-up plate dimensions | : 514x122mm |
| Dimensions (W x H x D) | : 600x120x80mm |
| Weight | : 4.5 (Approx.) |
| Permissible ambient temperature |
: 5 – 40°C |
| Permissible relative humidity | : 80% |
| Protection class according to DIN EN 60529 | : IP40 |
| Speed control | : 10 RPM Steps |
| Control display | : LED |
| Adjustable safety circuit min. | : 50°C |
| Adjustable safety circuit max. | : 130°C |
| Timer range | : 00:01 to 99:59 [HH: MM] |
| Also Known as | : 411.DG.01 |
