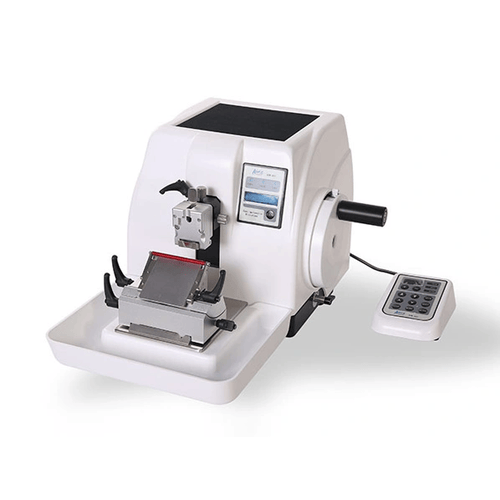

Description of AEM460 Semi-Automatic Rotary Microtome with Separate Control Panel
- Display monitors a range of functions including section thickness, trimming, section counter.
- Separated control panel is easy to operate.
- Spacious magnetized section waste tray.
- Light balance handwheel with ergonomic concept design.
- Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation.
- Retraction function effectively avoids the specimen against the blade when it’s truing around.
- Universal specimen holder fits international standard cassette.
- Handwheel locking may be activated at any position to protect specimen and improve safety standard.
- Automatic specimen feed memory function improves the trimming speed and quality.
Specification of AEM460 Semi-Automatic Rotary Microtome with Separate Control Panel
| Section thickness | 0 to 600µm 0 to 2µm, 0.5µm increments 2 to 10µm, 1µm increment 10 to 20µm, 2µm increments 20 to 100µm, 5µm increments 100 to 600µm, 50µm increments |
||||||
| Trimming thickness | 0 to 600µm 0 to 2µm, 0.5µm increments 2 to 10µm, 1µm increment 10 to 20µm, 2µm increments 20 to 100µm, 5µm increments 100 to 600µm, 50µm increments |
||||||
| Retraction thickness | 5-100µm. 5µm increments (can deactivate) | ||||||
| Specimen horizontal feed | 28mm | ||||||
| Specimen vertical feed | 70mm | ||||||
| Maximum specimen | 40x50x30mm, or standard cassette | ||||||
| Specimen holder adjusted system | Horizontal orientation | ±8° | |||||
| Vertical orientation | ±8° | ||||||
| Repositioning of knife holder base(Left-right) | 50mm | ||||||
| Electric Coarse Feed Speed | 300µm/s (Slow) and 900µm/s (Quick) | ||||||
| Dimension | Length | 575mm | |||||
| Width | 405mm, (without handwheel, 310mm) | ||||||
| Height | 325mm | ||||||
| Weight | about 35kgs | ||||||
| Power supply | 100-240 V AC±10 % | ||||||
| Frequency | 50/60 Hz | ||||||
| Power | <60 VA | ||||||
| Fuse | 2A | ||||||
