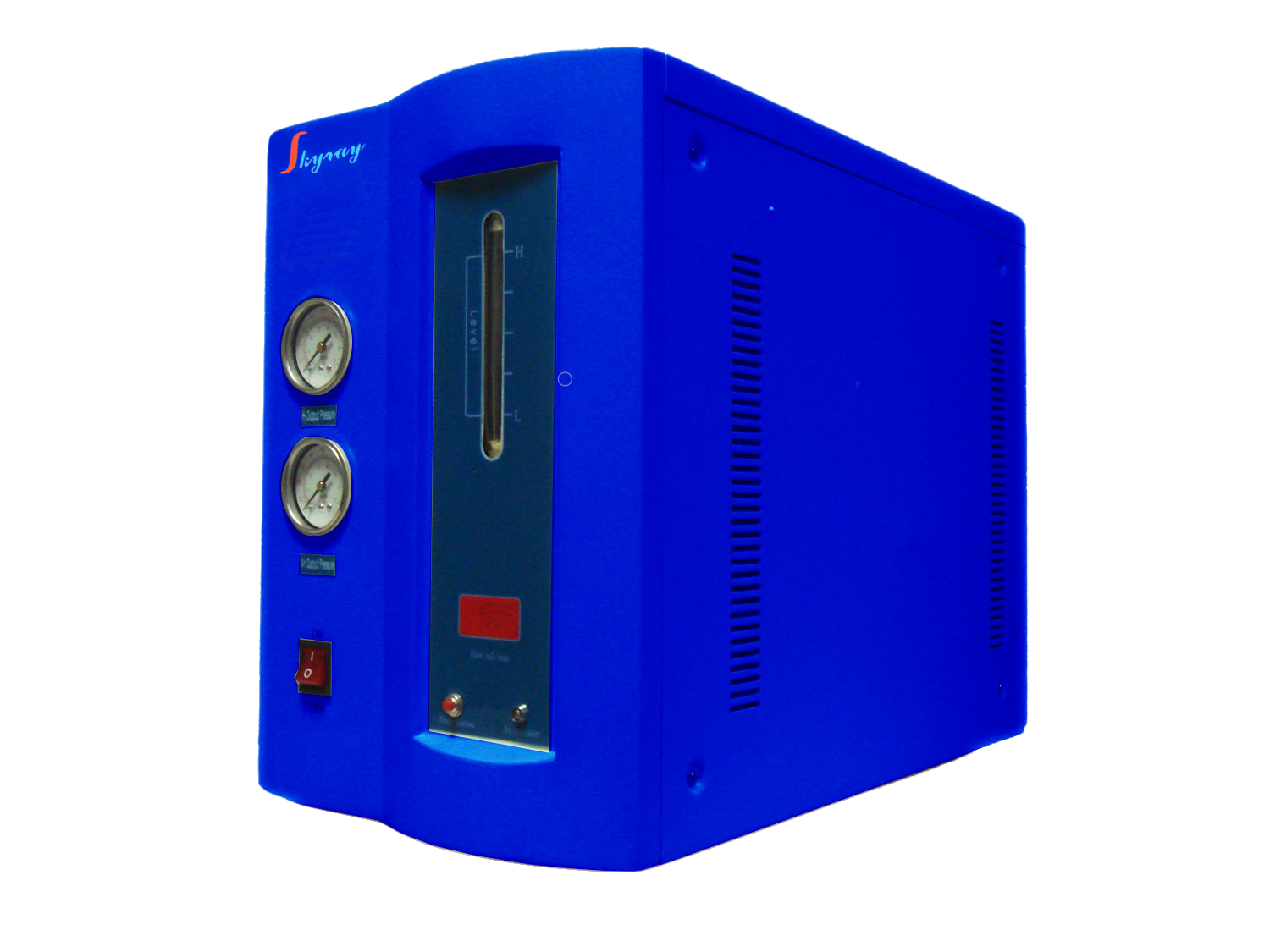

Based on the Model-H high purity hydrogen generator and Model-A air generator, AH-3/AH-5 generator combines the two with great quality and user friendly design. It is a perfect combination of safety, convenience and reliability, featuring advanced technique and stable performance.
Features
- Hydrogen and air can be generated together or separately
- Air passage: since the cylinder is made of stainless steel, there is no rustic water like in generators which use carbon-steel cylinder
- Hydrogen passage: advanced switching power supply is adopted so that efficiency of electrolysis can be highest
- Multi-stage protective device is installed, improving effectively the safe operation of the AH-3/AH-5 Combined Hydrogen and Air Generator.
| Model | AH-3 | AH-5 |
| Purity of produced Air | Purity of produced Air | |
| Purity of produced Hydrogen | 99.999% | |
| Output flow | Hydrogen: 0 ~ 300 mL/min Air: 0 ~ 2L/min |
Hydrogen: 0 ~ 500 mL/min Air: 0 ~ 5L/min |
| Output pressure | 0 ~ 0. 5MPa (factory default setting: 0.5 ± 0.01MPa) | |
| Power supply | AC 220V/50Hz or 110V/60Hz | |
| The maximal power consumption | 270W | 320W |
