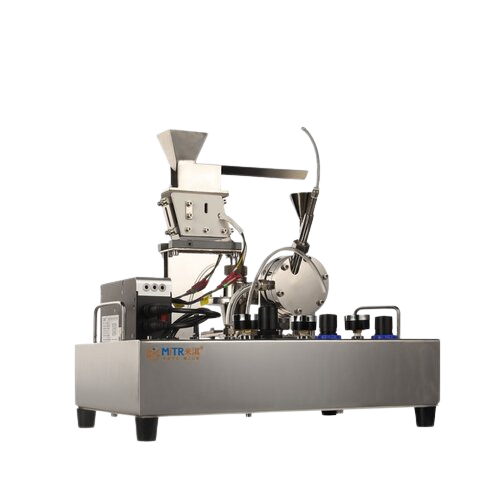

Air Jet Mill(Airflow grinder (flat type))

The Air Jet Mill(Airflow grinder (flat type)) uses high-speed compressed air to drive the material to impact and shear, so as to crush the material. The equipment operation is stable and reliable, and the unit has vibration feeder to adjust the feeding speed; cyclone separator and collecting bucket to collect products.

Technical Specification of Air Jet Mill(Airflow grinder (flat type))

• Main engine shell 304 stainless steel material, lined with aluminum oxide ceramic, wear-resistant and pollution-free;
• No rotating parts, stable and reliable operation;
• With the vibration feeder, convenient to adjust the feeding speed;
• With cyclone separator and collecting bucket to collect products, with dustproof bag 3;
• Gas consumption 0.4~0.6m3/min, use pressure 0.6Mpa~0.8Mpa;
• The buyer of the gas source, connected to the main gas pipe, the internal pressure regulating valve has been matched complete.
