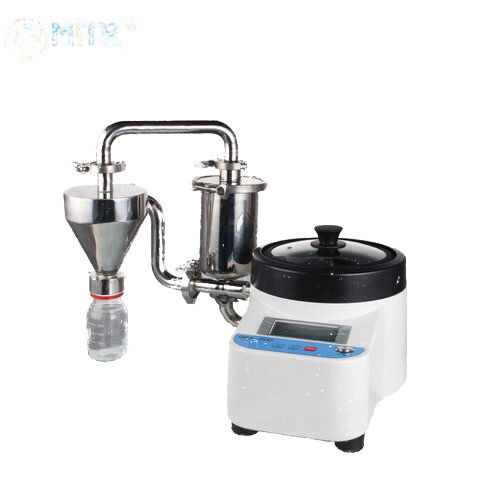

Air Jet Sieve Shaker uses aerodynamic screening to prevent agglomeration, samples are well dispersed, designed for the screening analysis of low density and easy agglomeration of fine particles. Suitable for the analytical sieve with a pore diameter of 10 microns and more than 10 microns. The screen is specially non-metallized, with adjustable nozzle speed, flexible screening, and an average screening time of 2-3 minutes. It can be used with manually adjustable industrial pumping equipment, or optional automatic pumping equipment, and the continuous airflow ensures the reproducibility of the screening process, and reproducible screening results.
Technical Specification of Air Jet Sieve Shaker
| Model | GTS 200 |
| Applicable particle size | 3um~4mm |
| Maximum load | 100g |
| Maximum series | Level 1 (Level 2 requires a cyclone collector) |
| Nozzle velocity | 5-55 (r/min) |
| Time set | 0-99 Minutes |
| Stoable parameter combinations | 9 + Quick start |
| Open Mesh Function | 10 (r/min)，+20°，-10° |
| air extractor | 2000-9999pa/20-99mbar/0.3-1.45psl |
| dispersion mode | Aerodynamic dispersion |
| Analyze the sieve diameter | φ200/φ203 |
| Screen tower height | 25/50mm |
| Appearance size | 460*288*305mm |
