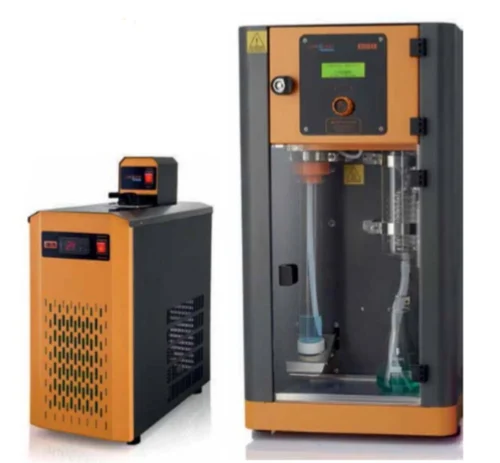

Alcohol Distillation Unit with Chiller

The Alcohol Distillation Unit with Chiller offers rapid and reliable distillation to analyze alcohol content. The integrated chiller provides effective condensation, minimizing alcohol loss and improving accuracy. Ideal for use in breweries, enzyme industries, and alcoholic beverage manufacturers.

Compare

Ask for Price

Main Features

Alcohol distillation via steam
dosing to save time.
Compatible with a 10l chiller.
Convenient operations with a single encoder push button.
Safe working environment with inbuilt door & tube sensors.
Use a chiller or ice pack for best extraction.
SS steam and acid resistant body generator enhances unit life.

Category: Scientific Laboratory Tags: alcohol, Chillers, distillation Brand: Borosil Scientific

Feature	Details
Model Name	KDI040
Tube Capacity (ml)	250 ml / 400 ml
Steam Addition	Automatic
Display	24 × 7 LCD
Cooling Water Flow Rate Sensor	Yes
Drip Tray	Yes
Visual Reagent Level Warning	Yes
Steam Power	Adjustable
Steam Output Regulation	25–100%
Maximum Distillation Time (mins)	20 mins
Tube Error Detection	Yes
Door Close Sensor	Yes
Control Button	Rotary Push Button
Dimensions (W × D × H)	380 × 350 × 725 mm
Current Consumption (A)	5.5 A
Power Consumption (W)	1000 W
Voltage	230 V, 50/60 Hz

Feature	Details
Model Name	CHL010
Tank Capacity	10 L
Tank Size (L × W × D)	325 × 265 × 200 mm
Cooling Capacity	1000 W
Pump Flow Rate	12.5 LPM
Heater Capacity (W)	2000 W
Display	LED
Temperature Stability	± 1.0°C
Temperature Range	-10°C to ambient -5°C
