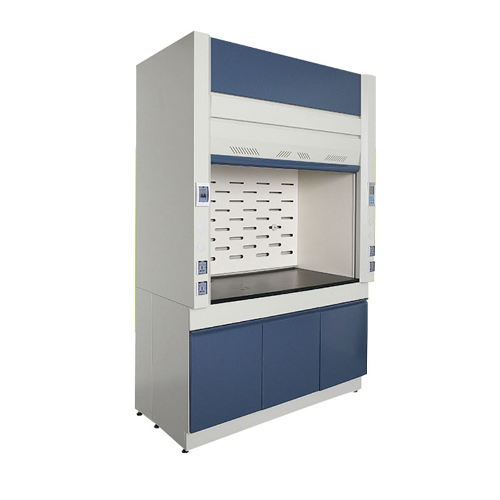

An All-Steel Fume Hood is a type of laboratory ventilation system designed to protect users from hazardous fumes, vapors, dust, or gases that may be produced during various laboratory processes, such as chemical experiments, mixing, or heating substances. This fume hood is made entirely from steel, offering durability, ease of maintenance, and resistance to corrosion, which is especially important in laboratories dealing with potentially aggressive chemicals.
Technical Specifications of All-steel Fume Hood
| Model | FH-PS |
|---|---|
| Main Frame | Power-coated Steel |
|
Dimension W*D*H |
1200*850*2350mm (1-person) |
| 1500*850*2350mm (2-person) | |
| 1800*850*2350mm (3-person) | |
| Up-down Protection Glass | Transparant 5mm Toughened Glass |
| Max. Openning Height | 740mm (vertical adjustable up-down toughened glass) |
| MOC of Work Surface | Chemical Resistant Laminate/ Epoxy Resin / Ceramic (Optional) |
| Light | 2-tube Philip Lights (30W), 400 Lux |
| Socket | 2 Nos. (220V/10A) |
| Control Panel | Integrated liquid crystal screen control panel,visually controling several parameter, including fan on-off, lighting on-off,main power supply |
