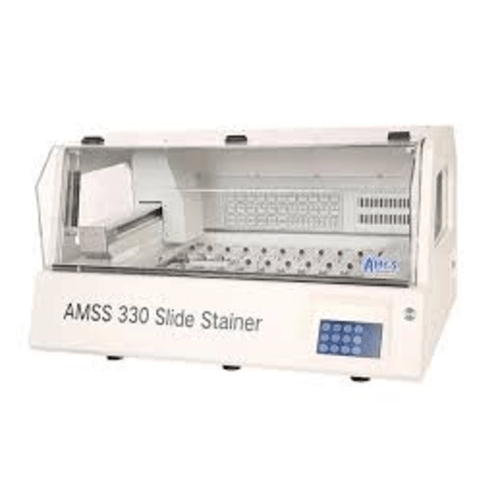

Description of AMSS330 Multi Slide Stainer
- Large capacity with 360 slides at a time
- Up to 15 programs, compatible with H&E, PAP and other staining
- Simple and visualized touch screen operation frame to conduct programing, operation and monitoring
- High low step on tank to prevent reagent running out
- activated carbon filtration to prevent pollution caused by volatilization of reagents
- Round bottom structure acting with vibration to minimize residual access to next tank
- Unique stir structure stirs all the hanging baskets simultaneously
Specification of AMSS330 Multi Slide Stainer
| Surroundings requirements | Working temperature | +10℃—35℃ | |||||
| Working humidity | <80%, defrosting | ||||||
| Working pressure | （86～106）KPa | ||||||
| Power supply | 220 V AC/110VAC | ||||||
| Frequency | 50/60 Hz | ||||||
| Power | <350 VA | ||||||
| Fuse specification | 3A | ||||||
| Security classification | Class I- Type B | ||||||
| Sample slide quantity | 300-600 slides per hour according to program | ||||||
| Load capacity | 12 baskets running maximum | ||||||
| Basket capacity | 30 sample sliders | ||||||
| Site quantity | 27 | ||||||
| Reagent sites | 19 at least | ||||||
| Wash sites | 5 | ||||||
| Dryer sites | none or 3 (optional) | ||||||
| upload/download sites | 6 | ||||||
| reagent sites capacity | 450ML | ||||||
| Incubation time settings | 0 second to 99 minutes 59 seconds | ||||||
| Program storage capacity | 15, each program with 25 steps maximum | ||||||
| Colorful touch screen | 7 Inch | ||||||
| Outside dimension (LxWxH) | 1050x680x600mm | ||||||
| Weight | about 116kg | ||||||
