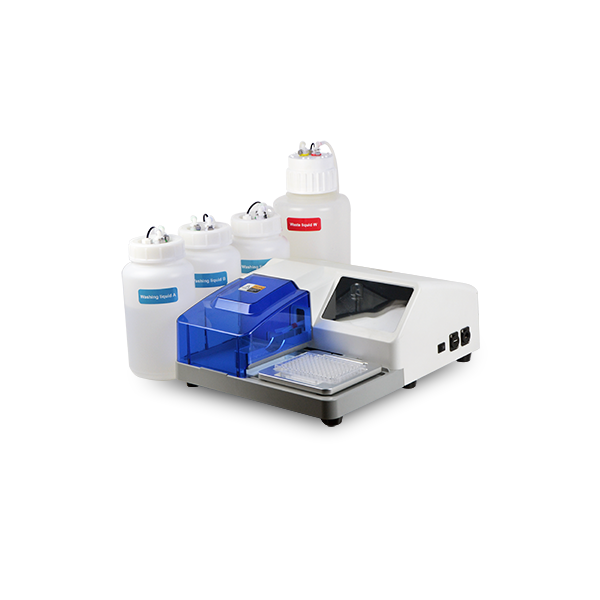

AMW-3000 Automatic microplate washer

The AMW-3000 Automatic Microplate Washer is a high-precision laboratory instrument designed for washing microplates used in ELISA (Enzyme-Linked Immunosorbent Assay) and other immunoassay applications. It effectively removes unbound substances and minimizes contamination, ensuring accurate and reliable test results. This washer is widely used in clinical diagnostics, food safety testing, veterinary analysis, pharmaceutical research, and environmental monitoring.

Characteristics of AMW-3000 Automatic microplate washer

• The amount of residual liquid is low, with an average of ≤0.65 μL per well, which effectively eliminates high background signals, and the results of enzyme label analysis are more reliable.
• Adopts 7-inch high-definition color screen display, full capacitive touch, intuitive and convenient operation, friendly human-computer interaction.
• The microplate can be soaked and shaken at the same time, and the soaking is more thorough.
• It has three kinds of linear vibration plate strength, high, medium and low, with low vibration noise.
• The instrument has an automatic flushing function, and the pipeline in the washing bottle has a built-in filter screen, which can effectively avoid pipeline blockage.
• With single-point, two-point and multi-point suction modes, cleaning is more thorough.
• Can set to perform single, cross-row, and whole-board cleaning;
• Pipeline flushing and distilled water washing functions can be set, and the flushing time can be adjusted.
• With a pause function, can also continue to completely perform the subsequent plate washing procedures .
• The instrument has the function of liquid level monitoring, which continuously monitors the liquid level status.
• Automatic alarm function when the washing bottle is used up, automatic alarm function when the waste liquid bottle is full, and automatically stop the operation.
• It can store 500 washing programs, and the program supports 99 times cycles.
• Support 8-pin, 12-pin needle cleaning head, and the cleaning head can be disassembled for cleaning.
• Suitable for flat bottom, U-shaped, V-shaped and C-shaped microplates.
• The position of the cleaning head is accurate to 0.1mm, suitable for various 96-well microplates.
• The pipe joint connection adopts snap button, which is convenient for installation.
• Insert the mouse into the USB port to operate the instrument, and support importing, exporting programs and updating the system from the U disk.

Technical Specification of AMW-3000 Automatic microplate washer

Wishing head

• 1×8, 1×12

Washing bottle

• 3×2L washing bottle, 1×4L waste bottle

Suitable microplates

• 96 well

Applicable plate type

• Flat bottom, U-shaped, V-shaped, C-shaped

Injection volume accuracy

• ≤2%@300uL

Injection volume precision

• CV≤1.5@300uL

Residual liquid

• ≤0.65uL(average per well)

Washing volume

• 50uL~2000uL increment 50uL

Washing times

• 1~99 times

Soaking and shaking time

• 0-99:59m:s

Shaking speed

• off, slow, medium, fast

Aspiration time

• 0~99.9s

Aspirate mode

• One point, two point, more point

Liquid injection coefficient

• 0~2.0

Wash solution channel

• Have

Alarm for insufficient washing liquid

• Yes

Waste liquid overflow alarm

• Yes

Waste liquid discharge

• Yes

Number of program storage

• 500 (Support U disk mass storage）

Communication Interface

• USB2.0, LAN

Input power

• AC 220V 50/60Hz

Fuse

• 250V, 5A Ф5×20

Dimensions

• 475 mm x 350 mm x 180mm

Net weight

• 11.5Kgs
