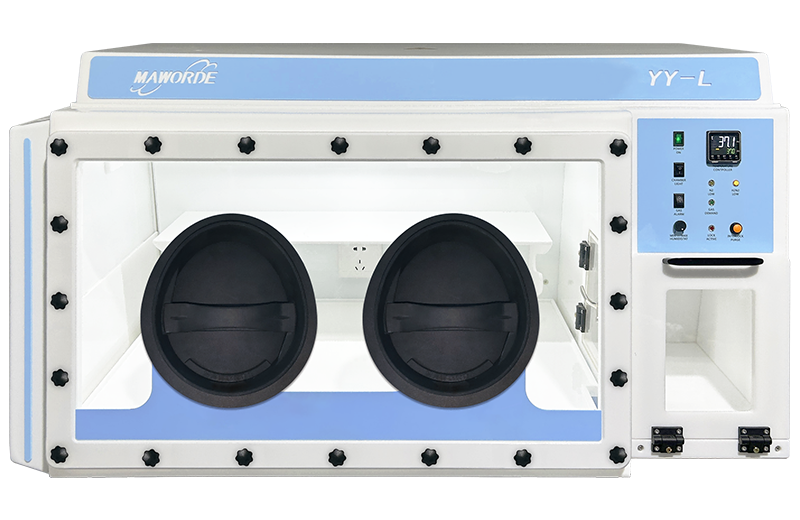

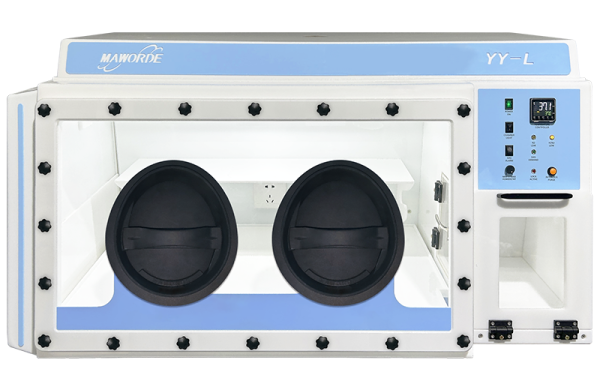

The YY-L Anaerobic Workstation is a precision-controlled chamber designed to support the cultivation and handling of anaerobic microorganisms in a strictly oxygen-free atmosphere. Equipped with advanced gas control and monitoring technology, the workstation creates and maintains a stable environment using a mixture of gases such as N₂, H₂, and CO₂, ideal for anaerobic microbiology, clinical diagnostics, and industrial biotechnology.
This unit offers intuitive operation with a touchscreen interface, programmable gas mixing, and real-time O₂ monitoring down to 0.1%. The integrated airlock and seamless entry system ensure sample integrity during transfer. The internal workspace features adjustable shelving, glove ports, and full lighting for comfortable operation.
Safety and performance are enhanced with automatic pressure control, gas leak alarms, and data logging capabilities. Designed with energy efficiency and user ergonomics in mind, the YY-L ensures consistent and reproducible results for even the most sensitive anaerobic procedures.
Its modular structure allows flexible expansion and integration with additional accessories such as CO₂ incubators or sample handling systems, making it a comprehensive solution for anaerobic research environments.
Features
- Micro Pressure Monitoring System
√ Utilizes a precise micro-pressure detection system with an accuracy of 0.1 KPA
√ Continuously monitors and auto-adjusts the intake system based on pressure - Precise Temperature and Humidity Control
√ Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
(Optional high/low temperature control)
√ Humidity Control: Room humidity to 80%
- Advanced Gas Circulation Design:
√ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
√ Consistent airflow contributes to accurate and reliable experimental outcomes
√ HEPA 14 filter available for superior particle removal and a pristine environment - Seamless Entry System (SES):
√ An efficient vacuum pump grants direct workstation access in 10-12 seconds
√ Operable with lab gloves, ensuring seamless and convenient handling
√ Glove port caps easily “park” in special holders, optimizing workspace utilization - Innovative Acrylic Construction:
√ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
√ Improved acrylic Integrity with Annealing Process for enhanced durability - Dual Pressure Relief System:
Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation
Options
- Portable O2 Detector for Data Recording: The O2 detector can be conveniently placed inside the chamber to monitor and record oxygen levels in real-time
- Cable Port: Facilitates equipment integration within the workstation
- Single Plate Entry System: Simplifies sample transfer
- Interlock Purge Foot Pedal: An Additional foot pedal for interlock purging, adding convenience
- Sidewall Pipette Holder: Convenient pipette holder for easy access
- Vacuum Suction Pipe: Simplifies waste disposal and cleaning processes
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Low Temperature System: Offers controlled low-temperature environments for specialized experiments
Specifications
| Specification | Details |
|---|---|
| Internal Dimension (W/D/H mm) | 800 / 460 / 420 |
| External Dimension (W/D/H mm) | 1160 / 660 / 600 |
| Capacity (petri dishes) | 520 / 400 |
| Interlock Capacity | 44 × 90 mm petri dishes |
| Gas Supplies | ANO₂ / N₂ |
| Real-Time Pressure Detection | Available |
| Temp & Humidity Control | Available |
| Seamless Entry System | Available |
| Detachable Front Panel | Available |
| HEPA Filtration System | Available |
| Interlock Purge | Available |
| Double Pressure Relief System | Available |
| Internal Socket & Light | Available |
| Cylinder Low Pressure System | Available |
| Fluorescent Detection Light | Available |
| Activated Carbon Sachet & Catalyst | Available |
