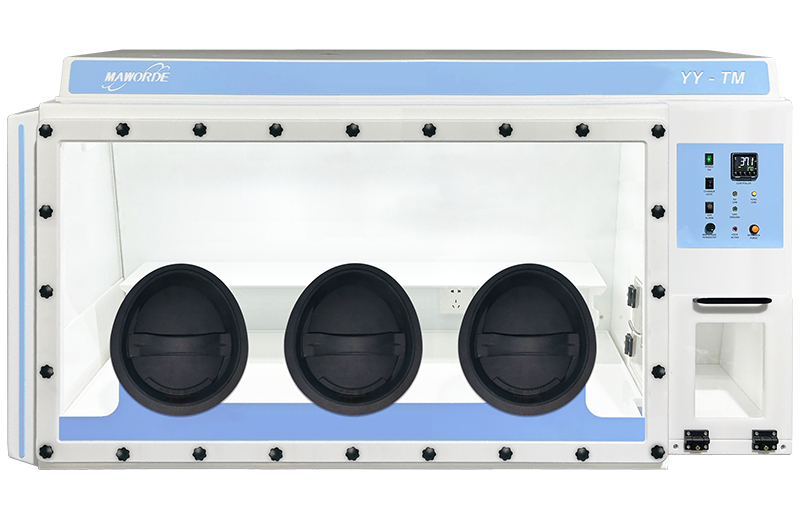

The Anaerobic Workstation (YY) features a pressure detector to achieve and maintain precise anaerobic conditions. YY-TM is our largest standard anaerobic model, capable of achieving anaerobic conditions in around 35 minutes.
Equipped with an advanced airway design, specialized entry system, and precise temperature and humidity control, the workstation ensures stable, high-anaerobic conditions. Additionally, the YY series includes a built-in interlock that enables quick sample transfer without disturbing the internal anaerobic environment.
This workstation provides a controlled and consistent environment for the culture, operation, and observation of anaerobic microorganisms, making it ideal for microbiology research. Applications include studies on intestinal microorganisms, oral-related anaerobic bacteria, food safety, and brewing.
Available in various sizes and configurations, our anaerobic workstation offers optional features such as a portable Oxygen detector and cable ports. Customized sizes are also available to meet specific research needs, providing increased flexibility.
Features
- Micro Pressure Monitoring System
√ Utilizes precise micro pressure detection system with an accuracy of 0.1 KPA
√ Continuously monitors and auto-adjusts the intake system based on pressure - Precise Temperature and Humidity Control
√ Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
(Optional high/low temperature control)
√ Humidity Control: Room humidity to 80%
- Advanced Gas Circulation Design:
√ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
√ Consistent airflow contributes to accurate and reliable experimental outcomes
√ HEPA 14 filter available for superior particle removal and a pristine environment - Seamless Entry System (SES):
√ Efficient vacuum pump grants direct workstation access in around 12 seconds
√ Operable with lab gloves, ensuring seamless and convenient handling
√ Glove port caps easily “parked” in special holders, optimizing workspace utilization - Innovative Acrylic Construction:
√ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
√ Improved acrylic Integrity with Annealing Process for enhanced durability - Dual Pressure Relief System:
Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation
Options
- Portable O2 Detector for Data Recording: O2 detector can be conveniently placed inside the chamber to monitor and record oxygen levels in real-time
- Cable Port: Facilitates equipment integration within the workstation
- Single Plate Entry System: Simplifies sample transfer
- Interlock Purge Foot Pedal: Additional foot pedal for interlock purging, adding convenience
- Sidewall Pipette Holder: Convenient pipette holder for easy access
- Vacuum Suction Pipe: Simplifies waste disposal and cleaning processes
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Low Temperature System: Offers controlled low-temperature environments for specialized experiments
Specifications
| Specification | Details |
|---|---|
| Internal Dimensions (W/D/H mm) | 500 / 460 / 420 |
| External Dimensions (W/D/H mm) | 860 / 660 / 600 |
| Capacity (Petri Dishes) | 350 / 300 |
| Interlock Capacity | 44 × 90 mm Petri dishes |
| Gas Supplies | ANO₂ / N₂ |
| Real-Time Pressure Detection | Available |
| Temperature & Humidity Control | Available |
| Seamless Entry System | Available |
| Interlock Purge | Available |
| Foot Pedal | Available |
| Internal Socket & Light | Available |
| Double Pressure Relief System | Available |
| Fluorescent Detection Light | Available |
| Cylinder Low Pressure System | Available |
| Activated Carbon Sachet & Catalyst | Available |
