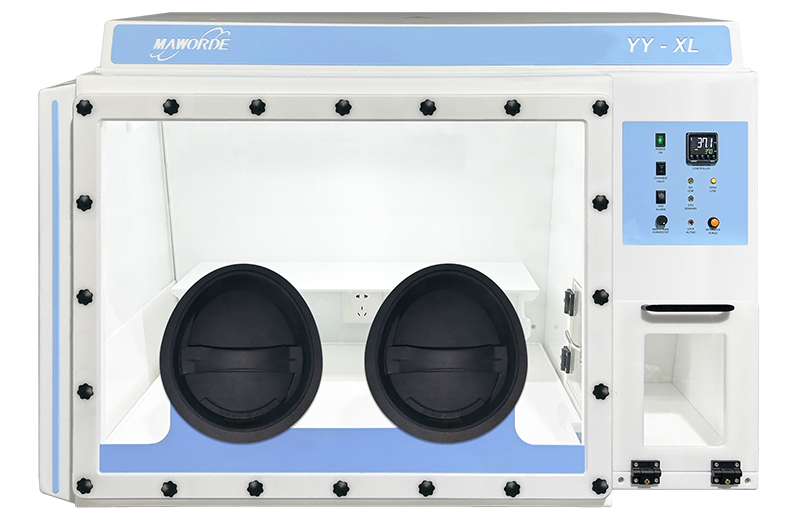

The Anaerobic Workstation YY-XL is a high-capacity, precision-engineered system designed for cultivating and manipulating anaerobic microorganisms in a strictly oxygen-free environment. Ideal for clinical microbiology, pharmaceutical research, and food and environmental microbiology, the YY-XL ensures the highest level of reliability and performance. Its advanced features include real-time pressure detection, temperature and humidity control, and a seamless entry system that maintains internal conditions during sample introduction or removal.
The workstation supports large volumes with a capacity of up to 600 Petri dishes, making it perfect for high-throughput labs. Equipped with a HEPA filtration system, activated carbon sachet & catalyst, and interlock purge, it maintains optimal gas purity and contamination-free conditions. Its gas supplies (ANO₂ and N₂) support stable anaerobic environments. The double pressure relief system, cylinder low-pressure alarm, and internal socket & lighting ensure safety, monitoring, and usability. A detachable front panel offers ease of maintenance and access.
Robust, user-friendly, and equipped with all essential features, the YY-XL is an indispensable tool for anaerobic research, offering scalable space and consistent environmental regulation.
Features
- Micro Pressure Monitoring System
√ Utilizes a precise micro-pressure detection system with an accuracy of 0.1 KPA
√ Continuously monitors and auto-adjusts the intake system based on pressure - Precise Temperature and Humidity Control
√ Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
(Optional high/low temperature control)
√ Humidity Control: Room humidity to 80%
- Advanced Gas Circulation Design:
√ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
√ Consistent airflow contributes to accurate and reliable experimental outcomes
√ HEPA 14 filter available for superior particle removal and a pristine environment - Seamless Entry System (SES):
√ An efficient vacuum pump grants direct workstation access in around 12 seconds
√ Operable with lab gloves, ensuring seamless and convenient handling
√ Glove port caps easily “park” in special holders, optimizing workspace utilization - Innovative Acrylic Construction:
√ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
√ Improved acrylic Integrity with Annealing Process for enhanced durability - Dual Pressure Relief System:
Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation
Options
- Portable O2 Detector for Data Recording: The O2 detector can be conveniently placed inside the chamber to monitor and record oxygen levels in real-time
- Cable Port: Facilitates equipment integration within the workstation
- Single Plate Entry System: Simplifies sample transfer
- Interlock Purge Foot Pedal: An Additional foot pedal for interlock purging, adding convenience
- Sidewall Pipette Holder: Convenient pipette holder for easy access
- Vacuum Suction Pipe: Simplifies waste disposal and cleaning processes
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Low Temperature System: Offers controlled low-temperature environments for specialized experiments
Specifications
| Specification | Details |
|---|---|
| Internal Dimension (W/D/H mm) | 760 / 570 / 550 |
| External Dimension (W/D/H mm) | 1120 / 660 / 770 |
| Capacity (petri dishes) | 720 / 580 |
| Interlock Capacity | 44 x 90 mm petri dishes |
| Gas Supplies | ANO₂ / N₂ |
| Real-Time Pressure Detection | Available |
| Temp & Humidity Control | Available |
| Seamless Entry System | Available |
| Detachable Front Panel | Available |
| HEPA Filtration System | Available |
| Interlock Purge | Available |
| Double Pressure Relief System | Available |
| Internal Socket & Light | Available |
| Cylinder Low Pressure System | Available |
| Fluorescent Detection Light | Available |
| Activated Carbon Sachet & Catalyst | Available |
