Two-range analytical scale with readout 0.01mg (0.00001g) up to 82g and 0.1mg above.
The APN220/82G scale is a two-range analytical scale equipped with many interfaces. USB-B and USB-A interfaces that enable data exchange with a computer and a printer, keyboard or external data storage media. Additionally, the balance is equipped with a LAN interface, thanks to which the scale can be connected to a computer network. RS232C can be used, for example, to connect a barcode reader.

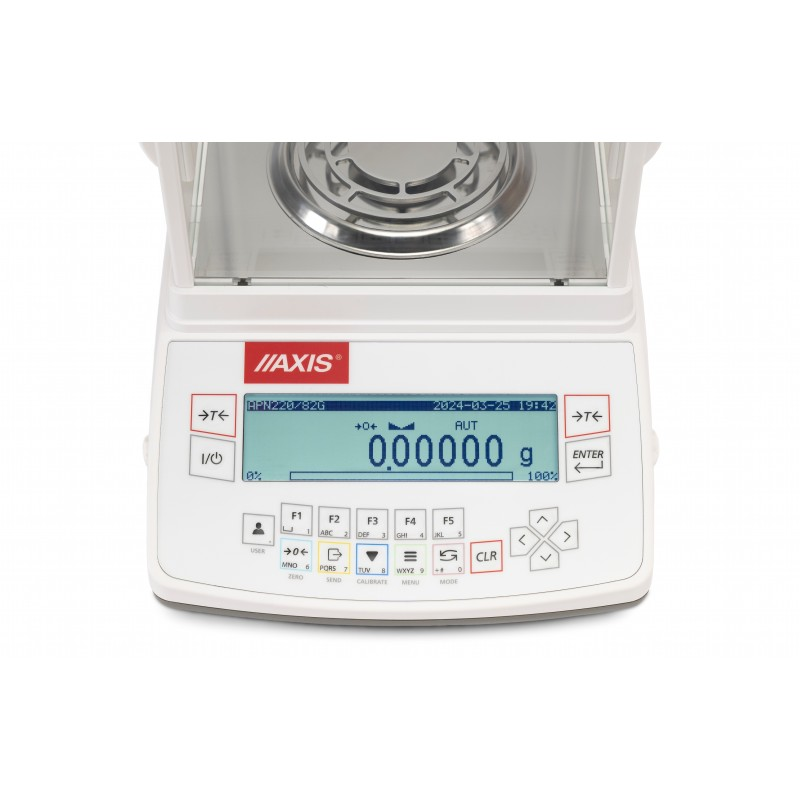

Each professional analytical scale included in the APN/G series has an extensive interface in the form of a keyboard (consisting of function and numeric keys) that allows you to quickly select the desired functions. The device can support a large database that includes information about:
- products,
- users
- measurements

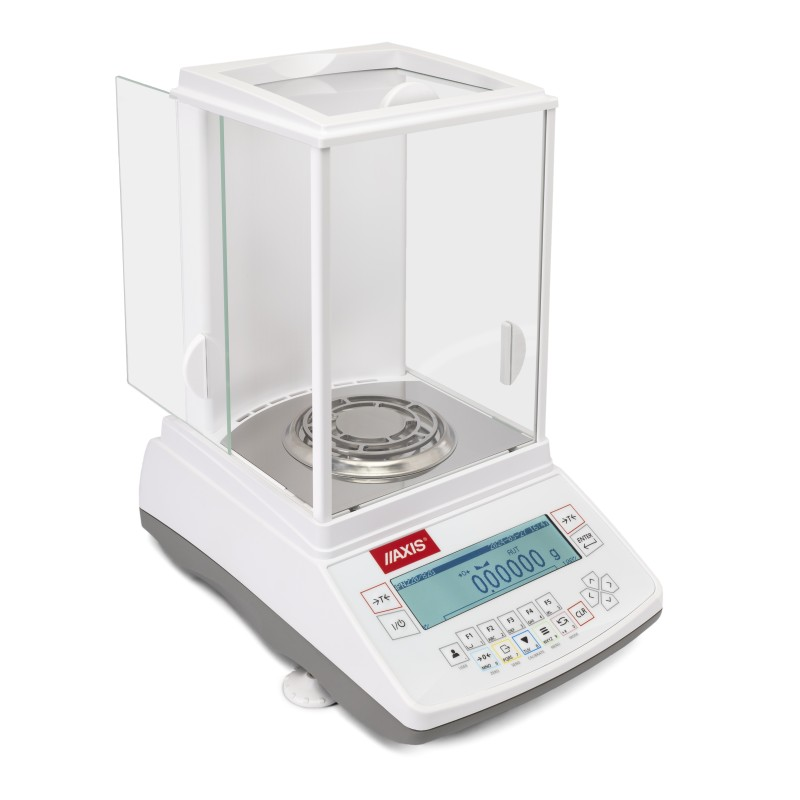

The scale also has a spacious weighing chamber, which is closed on three sides with sliding glass.
Alibi’s memory can store up to 100,000 measurements. Moreover, it is possible to transmit this data to and later archive it on a computer disk.
Key Features
-
0.1 mg Readability: Ultra-fine precision for analytical tasks
-
Internal Calibration: Ensures stable and accurate measurements without manual input
-
Class I Accuracy: Meets the highest precision standards for laboratory balances
-
Multiple Interfaces: RS232C, USB-A/B, and clock for flexible data communication
-
Full Tare Range: Supports net weighing in various containers
-
Compact Design: Space-saving chamber with Ø90 mm pan
-
Temperature Controlled Performance: Operates within +18°C to +38°C for optimal accuracy
-
E2 Standard Compatibility: Calibrated to international metrological standards
-
Fast Stabilization: Quick measurement response times
-
Durable Build: Long-lasting materials for professional lab environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | APN220/82G |
| Capacity (Max) | 82 g / 220 g (dual range) |
| Reading Unit (d) | 0.01 mg (to 82g) / 0.1 mg (to 220g) |
| Verification Unit (e) | 1 mg |
| Calibration | Internal |
| Tare Range | Full (Max) |
| Accuracy Class | I (Class I) |
| Interfaces | RS232C, USB-A, USB-B, LAN (Ethernet), Clock |
| Working Temperature | +18°C to +38°C |
| Dimensions (Overall) | 234 × 345 × 356 mm |
| Weighing Chamber Dimensions | 175 × 140 × 230 mm |
| Pan Size | Ø90 mm |
| OIML Standard Compliance | E2 200g |
