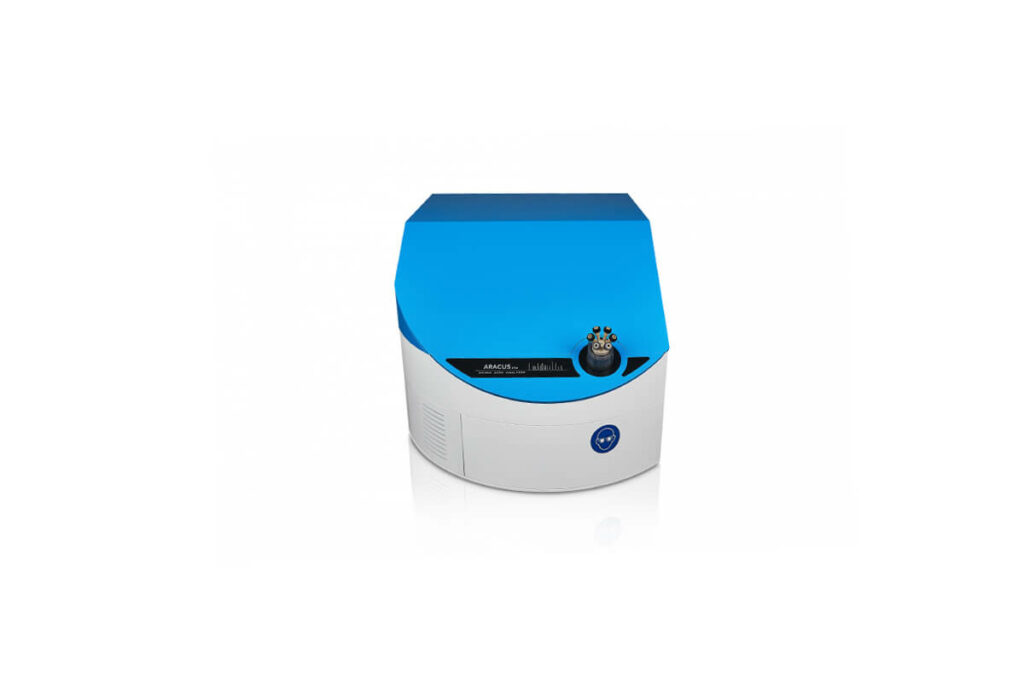

ARACUS “lite” Amino Acid Analyzer

The ARACUS „lite“ Amino Acid Analyzer is a simplified configuration of the ARACUS „classic“ and designed for a reduced number of samples and smaller available budget. Due to the small sample throughput and less eluent consumption the bottles of eluents are reduced in size and makes it possible to store the eluent bottles inside of the device and the rack . The „lite“ is using the same pump configuration for operation of two fluidic lines (eluent side and reactive side) and suitable for High Speed and High Resolution columns. The system equipped with manual injection mode can be connect also with an autosampler like all our devices. The „lite“ comes just with one LED photometer depending on the application. For analysis of 1° amino acids with 570 nm , for 1° and 2° with 500 nm. The system can be upgraded to a dual wavelength photometer with 440 and 570 nm by replacing the already installed photometer.

Technical Specifications of ARACUS “lite” Amino Acid Analyzer

Method

• post column derivatization with Ninhydrin

Autosampler

ARACUS lite can be upgraded with autosampler;

• 2 racks, each of them with space for 48 vials, sample cooling dosage in 3 different injection modes: full loop (100 μL), partial loop (5 – 50 μL), microliter pickup (1 – 35 μL)

Column

• stainless steel, cation exchange resin reproducibility of retention time < 0.3 % RSD, reproducibility of peak area ~ 1.0 % RSD

Column Oven

• 20 – 100 °C, accuracy 0.1 %

Reactor Temperature

• 20 – 140 °C

Spectroscopic detection

• measuring range: high, low LED photometer (570 nm or 500 nm), or dual photometer (440 # 570 nm), 8 years warranty, flow cell: 10 μL volume, 3 years warranty

Detection limit

• < 40 pmol / 20 µL with Ninhydrin

Quantification limit

• > 100 pmol / 20 µL with Ninhydrin

Pump system

• single pump, reproducibility of low rate: 0.1 % RSD at 100 μL/min, max. pressure: 400 bar | flow rate: 0.01 – 10.00 mL/min

Maximum operating pressure

• 120 bar

Ready to use kits

• kits including eluents, reagent and additional dilution buffer, ammonia absorber and separation columns for 500 – 1000 runs

Columns & Eluents

• Compatible with all High-Speed and High-Resolution columns, operating with all eluents based on different ionic strength (Li, Na, K)

Control software & Data acquisition

• Clarity (21 CFR part 11 compliant) or AminoPeak

Power

• 110 – 230 V

Dimensions

• 1080 mm x 370 mm x 375 mm

Weight

• 60 kg
