Product Description

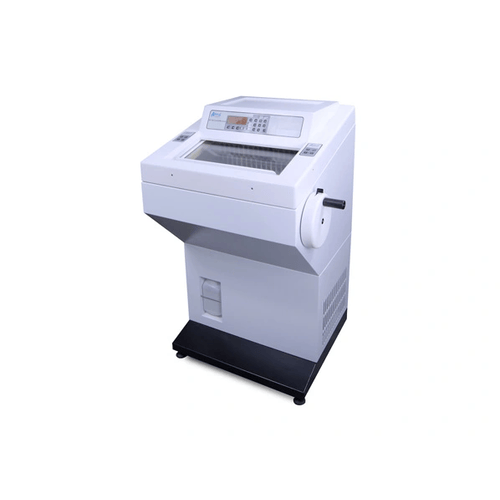

The AST500 Semi-Automatic Cryostat Microtome by Amos Scientific is engineered for precise frozen tissue sectioning in histopathology laboratories. Combining ergonomic design with advanced features, it ensures consistent, high-quality sections suitable for rapid pathological assessments and research applications. Key features include motorized specimen movement, a user-friendly interface, and advanced refrigeration systems to maintain optimal cutting conditions.
Specification of AST500 Semi-automatic Microtome Cryostat
| Freeze chamber minimum temperature | -35℃±2℃ |
| Freeze shelf minimum temperature | -45℃±5℃ |
| Lowest temperature of Peltier unit on freeze shelf | -55℃±5℃ |
| Lowest temperature of Peltier unit on Specimen Clamp | -50℃±5℃(working time of Peltier is 15 minutes.) |
| Maximum specimen size | 35×35mm |
| Specimen vertical stroke | 48±1mm |
| Specimen horizontal stroke | 15±0.2mm |
| Coarse feeding speed | 300μm/s (slow) or 900μm/s(rapid) |
| Section thickness range | 0μm～100μm adjustable;
0μm～3μm, in 0.5μm increments; 3μm～10μm, in 1μm increments; 10μm～20μm, in 2μm increments; 20μm～100μm, in 5μm increments; |
| Trimming thickness range | 10μm～600μm adjustable;
10μm～50μm, in 5μm increments; 50μm～100μm, in 10μm increments; 100μm～600μm, in 50μm increments; |
| Retraction range | 0~80μm adjustable, in 5μm increments |
| Voltage and frequency | 220 V ± 10%, 50 HZ / 110 V ± 10%, 60 HZ |
| Nominal Power | 1000 W |
| Weight | about 130 KG |
| Dimensions(W×D×H) | 805×715×1195mm |
