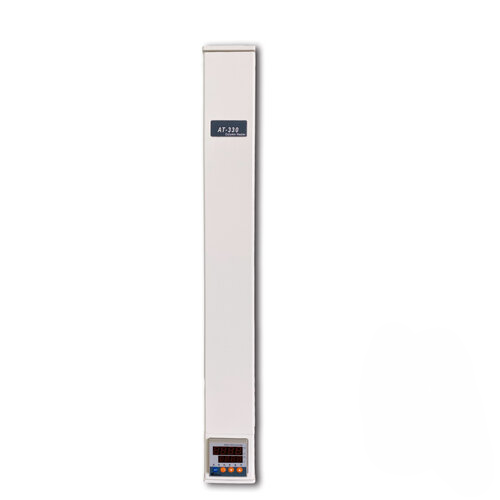

AT-330 External Column Oven is an essential part to HPLC/IC. To achieve the desired analysis effect, correctly manages column’s temperature，improves the column’s efficiency, sensitivity, improves distances among chromatogram peaks, saves time, lowers reverse pressure- all are essential elements to a high quality operation.
Technical Specification of AT-330 External Column Oven
Temp. range
- ambient~100℃ or ambient~150℃
Constant temp. error
- better than +0.5℃
Absolute accuracy
- better than +0.5℃（under 50℃）（+0.1℃ when corrected by user）
Accuracy of temp. setting
- 0.1℃
Temp. display
- 4-digits actual temperature LED display（red）
- 4-digits set temperature LED display（green）
Heating power
- 150W
Power source
- 220V+10%/50HZ
Outfit dimension
- 64mmW×110mmD×486mmH
Dimension of constant temp. chamber
- 44mmW×33mmD×360mmH
