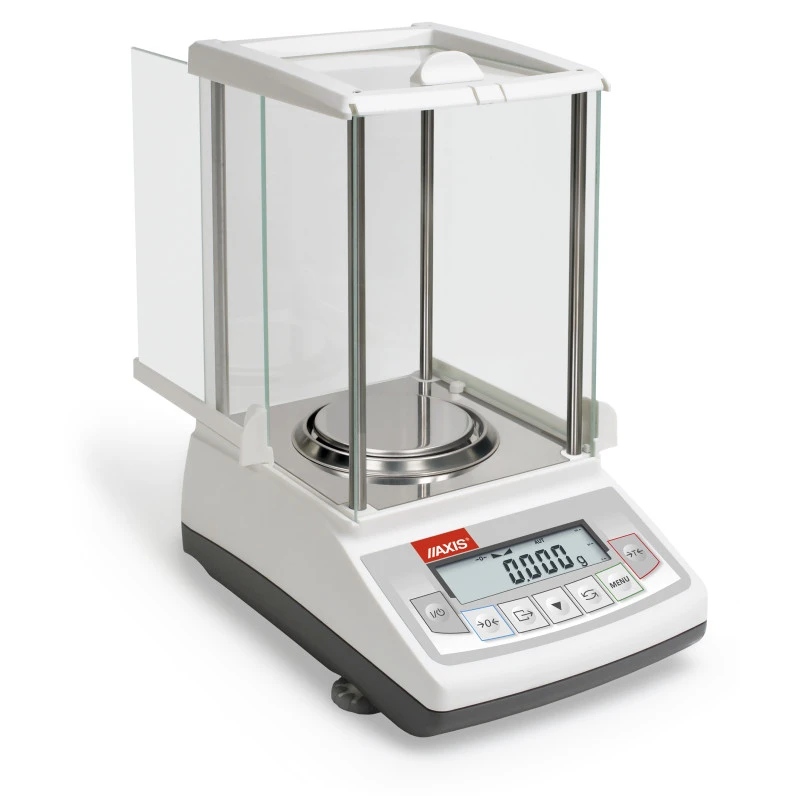

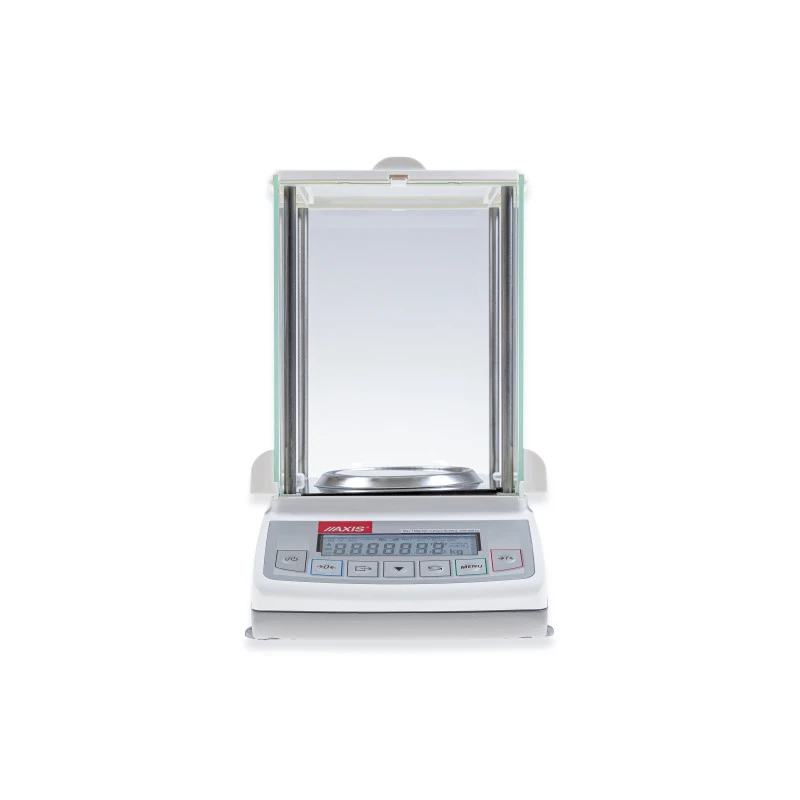

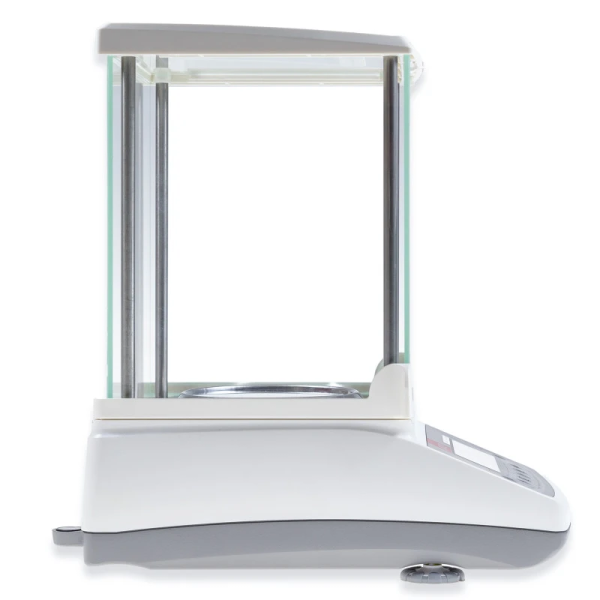

The ATE160 Laboratory Balance delivers 0.1mg readability and a 160g capacity with Class I accuracy. Designed for precision tasks, it features external calibration, RS232/USB connectivity, and fast weighing. Compact and reliable, it’s ideal for analytical labs and quality control environments requiring certified, high-resolution measurements.
Key Features
-
High Precision: 0.1 mg readability up to 160 g
-
External Calibration: Manual calibration with standard weights
-
Class I Accuracy: Complies with international precision standards
-
Data Connectivity: RS232C, USB, and clock for data logging
-
Compact Design: Space-efficient footprint (185×290×305 mm)
-
Certified Performance: OIML E2 compliance for 100g weights
-
Temperature-Stable Operation: Designed for +18°C to +35°C environments
-
Full Tare Range: Supports negative weighing for containers and vessels
Specifications
| Specification | Details |
|---|---|
| Model | ATE160 |
| Capacity (Max) | 160 g |
| Reading Unit (d) | 0.1 mg |
| Calibration | External |
| Tare Range | Full (-160 g) |
| Accuracy Class | I (Class I) |
| Interfaces | RS232C, USB, Clock |
| Working Temperature | +18°C to +35°C |
| Dimensions (Overall) | 185 × 290 × 305 mm |
| Power Supply | ~230V 50Hz 6VA / 12V 1.2A |
| OIML Standard Compliance | E2 100g |
