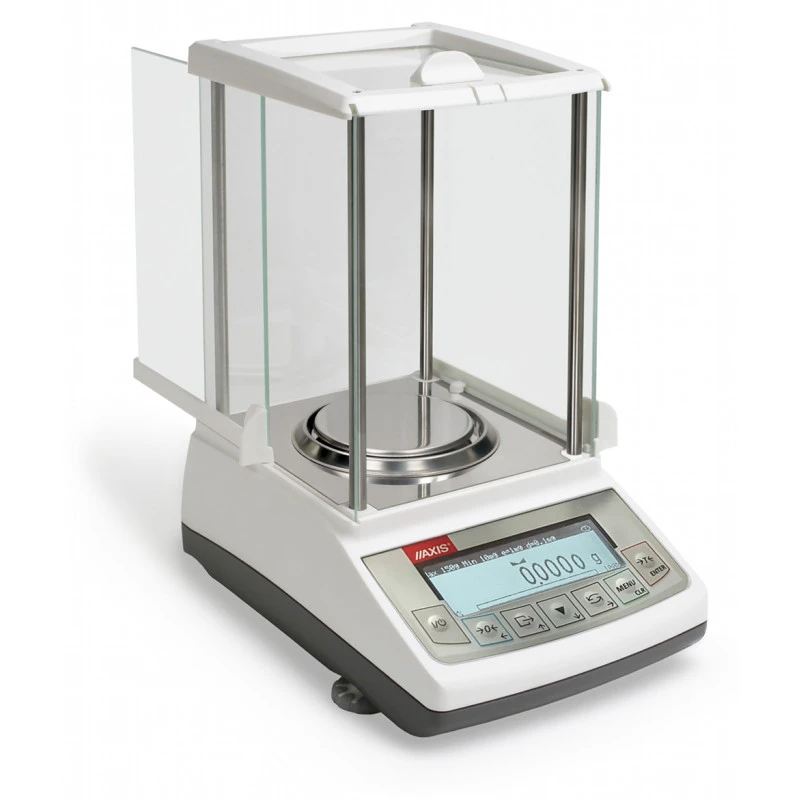

The ATE160G Laboratory Balance features 0.1mg readability and 160g capacity with external calibration and full tare range. It includes RS232, USB, PS/2, and clock interfaces. Designed for precision lab work, it meets Class I standards and is OIML E2 certified—perfect for quality control and analytical applications.
Key Features
-
0.1mg Readability: High-precision results with 160g capacity
-
External Calibration: Supports certified weight calibration (E2 100g)
-
Full Tare Range: Allows weighing of net content precisely
-
Advanced Connectivity: Includes RS232, USB, PS/2, and real-time clock
-
Class I Accuracy: Ensures compliance with analytical lab standards
-
Compact Design: Space-saving size for modern lab environments
-
Temperature Stability: Optimal performance from +18°C to +35°C
-
OIML E2 Certified: Globally recognized metrology compliance
Technical Specifications
| Specification | Details |
|---|---|
| Model | ATE160G |
| Capacity (Max) | 160 g |
| Reading Unit (d) | 0.1 mg |
| Calibration | External |
| Tare Range | Full (- 160 g) |
| Accuracy Class | I (Class I) |
| Interfaces | RS232, USB, PS/2, Clock (Zegar) |
| Working Temperature | +18°C to +35°C |
| Dimensions (Overall) | 185 × 290 × 305 mm |
| OIML Standard Compliance | E2 100g |
