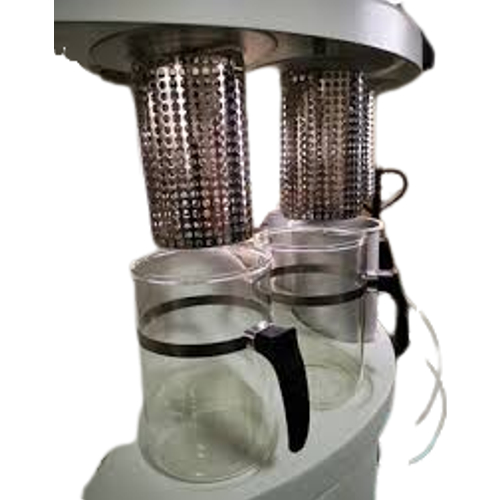

ATP200 Carousel Tissue Processor

Description of ATP200 Carousel Tissue Processor

• Robust and easy-to-handle equipment,mounted on a tubular sheet metal frame with anti-rust treatment and finishedin plastic resin with a high finish and resistance;
• External finish in white color resistant to the laboratory environment and products such as xylene;
• Microprocessed touch screen digital panel,which controls the equipment functions such as:Date,Time and Year and seting of the equipment configuration parameter;
• Daily 24-hour and time delay programming for weekends or extended holidays;
• Variable programming with selectable time intervals according to the operator’s needs;
• Time control and adjustable bath changing speedallowing total drainage and avoiding contamination from one bath tothe next as much as possible;
• Own battery lasting up to 10 years that allows data protection,even in the absence of electricity;
• Continuous  operation  for  +/-20  minutes  even in the absence of electricity;
• Energy provided by the UPS,which may vary according to the UPS’s capacity
• Protection sensors that individually control the temperature of the paraffin mugs,with sound and visual alarm for protection against over or under heating;
• Protection system that does notallow the passage of the last xylene bath to parafin,if the temperature is not in accordance with the selected parameter;
• Automatic stop system at the end of the cycle;
• Modern protection system that blocks heating of the resistances at 90℃,not allowing temperatures to exceed this value Storage of up to 09 protocols with programs pre-selected by the operator;
• Stainlessteel basket oscilation system with a capacity ofup to 85 plastic cassettes,which improves the quality of theprocessed material;
• Temperature control of the paraffin baths made in the panel itself,with regulation of up to 75℃sensitivity of+/-1 ℃;
• Capacity of 255 plastic cassettes,using 03 baskets (optional).
• Capacity for 10 chemical baths of2or3(optional)paraffin baths,totaling 12 baths of 2000ml each.
• Baths with sealing lids that prevent environmental contamination as much as possible.
• Heating paraffin directly in the mugs, ensuring better temperature control

Specification of ATP200 Carousel Tissue Processor
