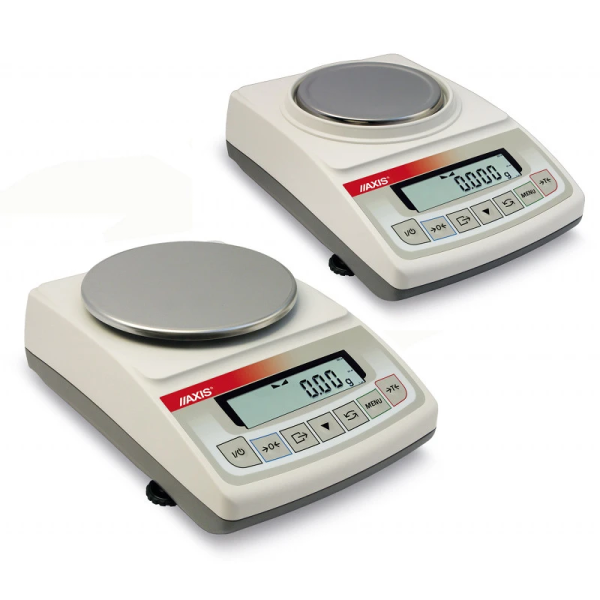

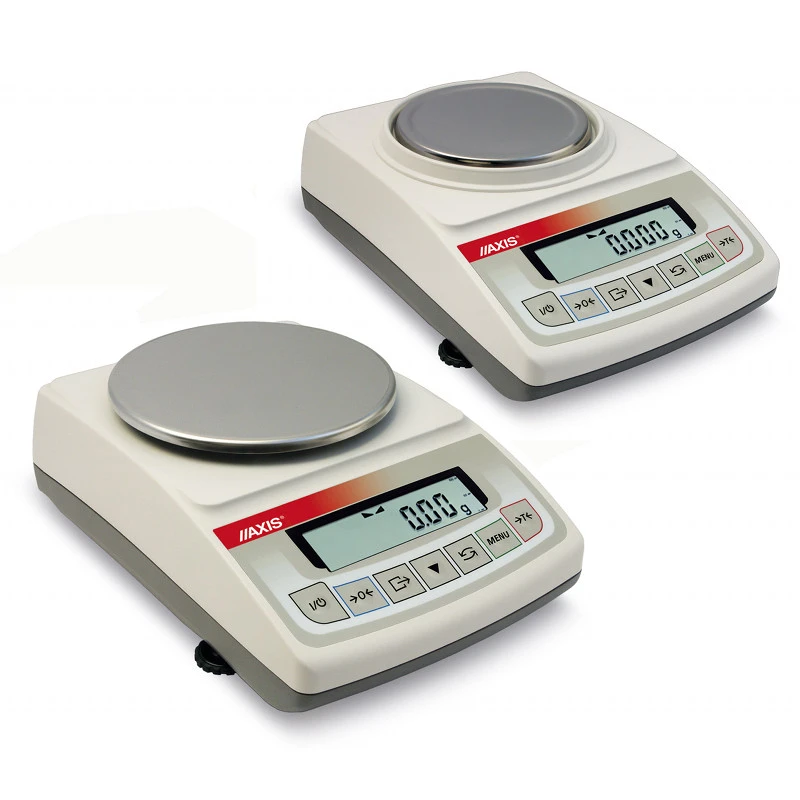

ATZ220 Laboratory Balance


Compact laboratory balances of ATA and ATZ series are small-sized high-precision scales. The balances are designed to use in laboratories, pharmacies, jewelry stores, and other places, where high measurement precision is required.
A transparent draft shield with cover (option) allows operation in rooms, where the elimination of air movements is impossible. A big, backlighted display and functional keyboard allow easy and effective working with the scale.
All the scales have a rich set of special functions: counting of identical pieces, calculation of mass changes in percentage, recipe making, change of measurement unit (ct, lb, oz, ozt, gr, dwt), summing measurement series, and others.
RS232C interface allows connecting to a computer, printer, or label printer to print measurements.

ATZ scales can be calibrated only with an external standard of mass.

Compare

Key Features

  • External Calibration: Requires manual calibration using an external mass standard.

  • Interfaces: Equipped with RS232C interface as standard; optional USB, LAN, or Wi-Fi interfaces are available.

  • User Interface: Features a backlit LCD display and functional keyboard for intuitive operation.

  • Data Management: Supports connection to computers, printers, or label printers for data recording and printing.

  • Additional Functions:

    • Counting of identical pieces

    • Calculation of mass changes in percentage

    • Recipe making

    • Change of measurement units (ct, lb, oz, ozt, gr, dwt)

    • Summing measurement series

    • Density determination (optional)



Specifications

Specification Details
Capacity (Max) 220 g
Reading Unit (d) 0.001 g
Verification Unit (e) 0.01 g
Calibration External
Tare Range Up to -220 g
Accuracy Class II
Interfaces RS232C (standard)
Working Temperature -10°C to +40°C
Weighing Time Under 3 seconds
Pan Size Ø115 mm
Dimensions (WxDxH) 185 × 290 × 90 mm
Balance Weight 2.1 kg
Power Supply ~230V 50Hz 6VA / 12V 1.2A
