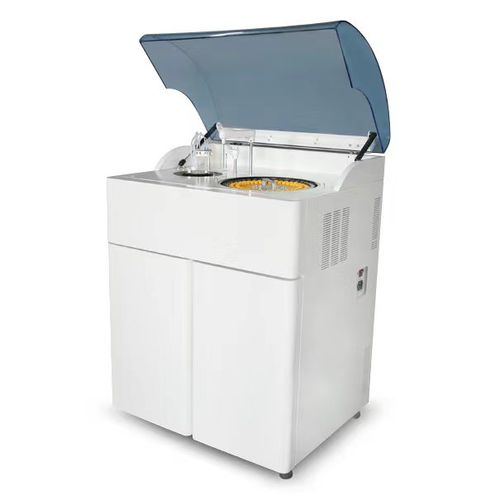

Automatic Chemistry Analyzer NEO-200

Key Features of Automatic Chemistry Analyzer

• High Throughput: Processes up to 200 tests per hour.

• Sample & Reagent Capacity: 40 sample positions and 80 reagent positions with refrigeration.

• Low Sample & Reagent Volume: Minimum sample volume of 2 µL and reagent volume of 10–300 µL.

• Advanced Washing System: Automatic 7-step cuvette washing with low water consumption (0.5 L/h).

• Temperature Control: Dry bath system maintaining 37±0.1°C.

• User-Friendly Interface: Touchscreen operation with built-in barcode scanner.

• Data Management: Bi-directional LIS interface for seamless data exchange.

• Safety Features: Automatic probe cleaning, liquid level detection, and collision protection.

Applications of Automatic Chemistry Analyzer

• Liver Function Tests: ALT, AST, ALP, GGT, TBil, DBil.

• Renal Function Tests: BUN, CREA, UA.

• Cardiac Markers: CK, CK-MB, LDH, cTnI, MYO.

• Diabetes Monitoring: GLU, HbA1c.

• Lipid Profile: TG, TC, HDL-C, LDL-C.

• Protein Analysis: TP, ALB, PA.

• Electrolyte Analysis: CO₂.

• Inflammatory Markers: CRP, PCT.

• Hormonal Assays: Insulin.

Specifications of Automatic Chemistry Analyzer

• Throughput: 200 tests/hour.

• Sample Positions: 40.

• Reagent Positions: 80 (40 for R1 and 40 for R2) with refrigeration.

• Sample Volume: 2–50 µL (0.1 µL step).

• Reagent Volume: 10–300 µL (0.1 µL step).

• Reaction Volume: 150–350 µL.

• Reaction Time: 3–10 minutes.

• Temperature Control: Dry bath at 37±0.1°C.

• Cuvettes: 60 reusable cuvettes.

• Washing System: Automatic 7-step washing.

• Water Consumption: 0.5 L/h.

• Dimensions: 565 mm × 415 mm × 350 mm.

• Weight: <23 kg.

• Power Supply: 220/230 AC Volts.

• Interface: Bi-directional LIS, USB, built-in barcode scanner.
