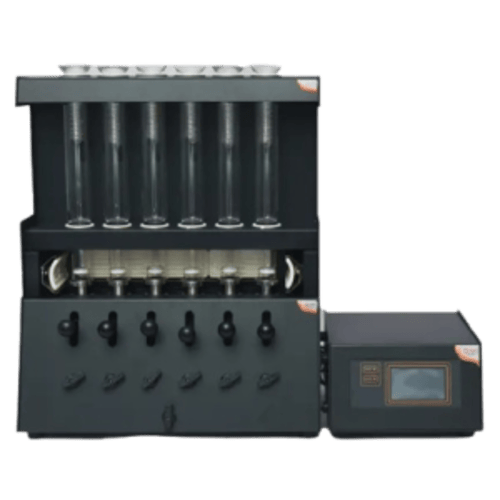

The Automatic Fibre Estimation System is a precision laboratory instrument designed to automate the process of determining fibre content in various samples such as food, feed, agricultural products, textiles, and industrial materials. This system provides fast, accurate, and reproducible measurements of total dietary fibre, crude fibre, neutral detergent fibre (NDF), acid detergent fibre (ADF), and related fibre fractions according to recognized analytical standards. By integrating automated digestion, filtration, washing, drying, and weighing processes, the system drastically reduces manual labor and minimizes human error. It features programmable protocols based on standard methods such as AOAC, AACC, Van Soest, and ISO for fibre analysis, enabling users to tailor tests to specific research or quality control needs. The instrument’s robust design includes temperature-controlled digestion units, automated filtration modules, and precision electronic balances, combined with a user-friendly touchscreen interface for seamless operation and data management.
Features of Automatic Fibre Estimation System
- Designed to protect electronics from acid / alkali wet area & heat zone
- Independent loading of sample with individual mechanical controls
- Auto acoustic alarm on completion of process
- Auto power off mode on completion of process
- Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection
- PC chart Software Performs Live Graphical Representation of Time/ Temperature Gradient on PC Connectivity
Technical Specification:
| Description | Automatic Six Place PC Compatible Autosequencing Regular Version Fibre Estimation System |
| Display | Bright Digital two line Alphanumeric LCD Digital Display of time and temp. |
| No. of Positions | Six Samples |
| Sample Size | 0.1 to 4 gms (depending on the type of sample) |
| Temperature Control Range | RT- 500º C (Continuously variable) |
| Digital Timer | 0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode |
| Temperature Accuracy / Precision | ± 0.5° C |
| Ramp & Hold | Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme |
| Presets | Selectable Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs |
| Heater Source | Ceramic Infrared Heater |
| PID Control | Fuzzy logic Microprocessor based PID Controller with Auto tuning facility |
| Temperature Setting | Feather touch membrane keys |
| Crucibles | Sintered Silica glass Crucible with P1 Porosity disc (6 Nos.) |
| Extractor | Marked borosilicate extraction vessel |
| Preheating Hotplate | Fibra Flow System with self priming pump connected to water suction filter pump. |
| Power Consumption | 2500 Watts. |
| PC & Printer Connectivity | Direct USB port for PC/Laptop connectivity Intelligent Soware for PC compatibility for 2 way Bidirectional communication |
