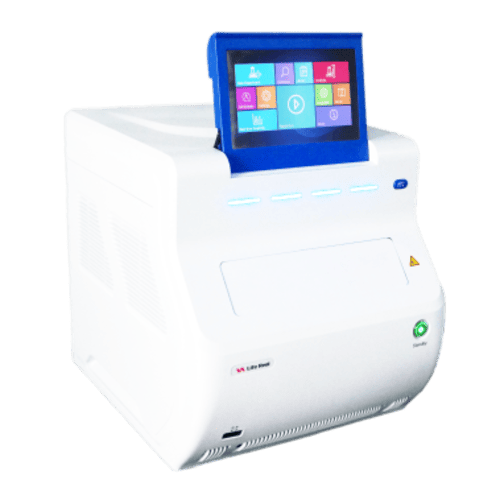

Automatic Integrated Gene detection System (AIGS)

Automatic Integrated Gene detection System (AIGS) is the fully integrated system for fast molecular diagnostics, which combines the nucleic acids extraction and realtime PCR amplification, by using the microfluidic cartridge preassembled kit to realize the fully integrated gene data analysis for the samples. It can be widely used for many kinds of gene detection, such as the clinical diagnostic market, food safety, agriculture, army and public security.  As the new generation gene detection system, AIGS realizes the fully integrated detection from sampling into the report. It is portable and can run each sample at any time and automatically transfer the data as your wish. It is a close system with no contamination and can be easily operated by the user. No need extra nucleic acid purification machine or PCR lab, by using the preassembled kits, AIGS can run as a POCT system without the complicated operation.

Feature of Automatic Integrated Gene detection System

A fully integrated gene extraction and analysis system—The close system ensures easy operation without a PCR lab. The preassembled kits using the microfluidic technology guarantee the instant detection by adding the sample to the kit without need of preparing the reagents.

Multiplex PCR detection individually controlled—AIGS includes 4 individual detection units. Each unit can run one target kit at any time. One unit can run a multiplex PCR test up to 5 colors. AIGS has two models, one includes the controller, which can control the extra 5 sets of AIGS without controller.

High sensitivity and accurate result—Using the high sensitive Hamamazu PMT detector, Microfluidic designed cartridge.

Internet+ data transfer—Connectors: Wifi, USB,LAN.

Technical Specification of Automatic Integrated Gene detection System

• ModelLifeReady 1000
• Sample capacity4 samples
• Dynamics range1-10¹⁰copies
• Block temperature range40℃-99.9℃
• Block temperature fluctuation≤±0.5℃
• Block  temperature  accuracy≤0.5℃
• Temperature  display  accuracy0.1℃
• Block  ramping  rate4℃/S
• DyesF1:FAM、SYBER Green;
  F2:HEX、VIC；
  F3:TAMRA、CY3；
  F4:TEX RED、ROX;
  F5:Cy5;
• Fluorescence detection repeatabilityCV≤3%
• Fluorescence detection accuracy≤5%
• Fluorescence Detection time≤5s
• Input powerAC100-240V,50-60Hz,350W
• Data connectorUSB, wifi, LAN
• Size380mm×305mm×343mm
