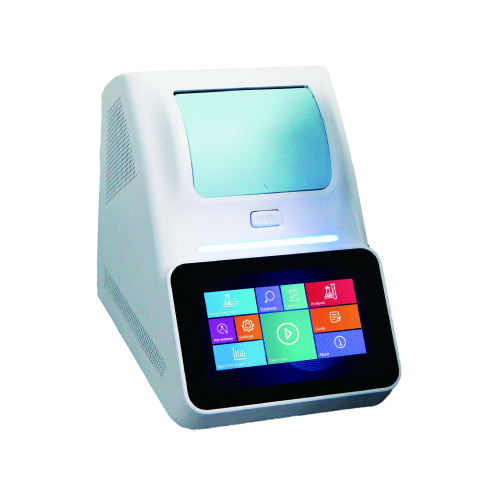

Automatic Integrated Gene detection System (AIGS)

Automatic Integrated Gene detection System (AIGS) is the fully integrated system for fast molecular diagnostics, which com- bines the nucleic acids  extraction and realtime PCR amplification, by using the microfluidic cartridge preassembled kit to realize the fully integrated gene data analysis for the samples. It can be widely used for many kinds of gene detection, such as the clinical diagnostic market, food safety, agriculture, army and public security.

Feature of Automatic Integrated Gene detection System (AIGS)

Fully-closed Microfluidic Kit, No Contamination—Without need of a three-part PCR laboratory, on-site detection after sampling can be realized through fully enclosed microfluidic cartridge. The ready-to-use kits do not require any dosage with the extraction reagents and detection reagents preassembled.

Real-time Fluorescent PCR Technology, High Sensitivity—It combines the specificity and sensitivity of PCR detection technology, which shortens the window period of disease detection, and all the extracted nucleic acids from the sample enter the reaction system, which greatly improves the sensitivity..

From sample to report as less as in 1 hour—The whole process, including the extraction, purification, amplification and detection of sample, will be done in about one hour, which shortens the period of detection.

Simple and intuitive software for easy operation—It t’s easy to operate with the optimized software interface and customizable experimental program. Test results can be traced and reports can be printed.

PC control+LIS connection available

Technical Specification of Automatic Integrated Gene detection System (AIGS)

• ModelSmart-Life S
• Sample capacity1 samples
• Block temperature range40℃-99.9℃
• Block temperature fluctuation≤±0.5℃
• Block  temperature  accuracy≤0.5℃
• Temperature  display  accuracy0.1℃
• Fluorescence intensity detection repeatabilityCV value≤3%
• Fluorescence intensity detection precisionCV value≤5%
• DyesF1:FAM、SYBER Green Ⅰ;
  F2:HEX、VIC；
  F3:TEX RED、ROX；
  F4:Cy5
• Input powerAC100-240V,50-60Hz,120W
• Data connectorUSB, WiFi, Network cable
• Size190 mm (L) × 278mm (W) × 343 mm (H)
• Weight6 Kg
