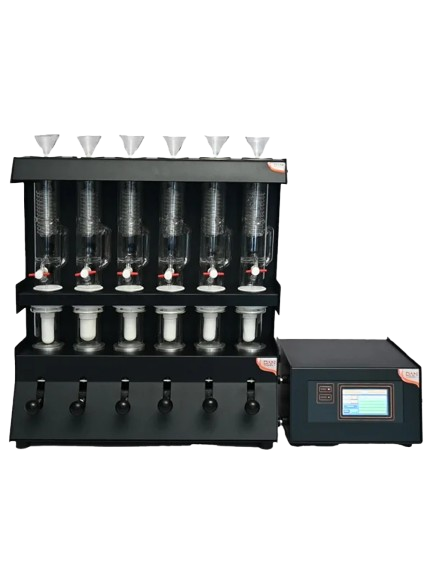

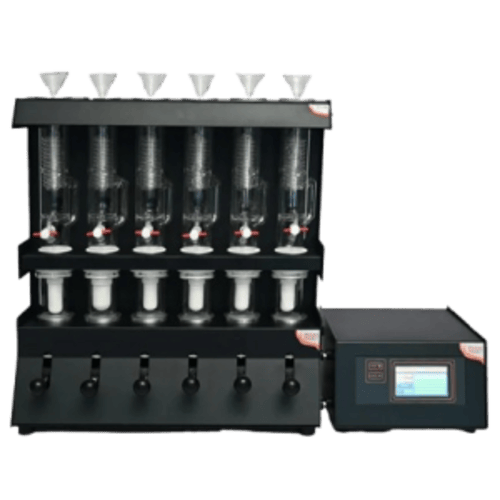

The Automatic Solvent Extraction System is a high-performance, programmable laboratory apparatus designed for the efficient extraction of analytes from solid or semi-solid matrices using a variety of organic solvents. This system automates the entire extraction process, offering consistent, reproducible results and high throughput, making it ideal for food safety testing, environmental analysis, pharmaceutical research, and chemical industries. By integrating heating, solvent delivery, extraction, rinsing, and solvent recovery into a fully enclosed, automated cycle, this system ensures minimal solvent loss, reduced operator exposure to toxic chemicals, and high sample recovery rates. It typically complies with standard methods such as AOAC, EPA, and ISO for fat, oil, pesticide, and pollutant extraction.

Safety Features of Automatic Solvent Extraction System

  • Standalone housing for Temperature controller to protect electronics from solvent area & heat zone.
  • PC chart software performs Live graphical representation of time/temperature gradient on PC Connectivity
  • Auto Alarm for recovery phase
  • Auto power off mode on completion of extraction.
  • Independent loading of sample with individual mechanical controls.
  • Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection.
  • Cold water line for condensation of solvent with silicon hose interconnection for condensor



Technical Specification:

MODEL DAN-6T-02
Description Automatic PC Compatible Auto sequencing Regular Six Place Solvent Extraction System
No. of Positions Six Samples
Sample Size 0.1 to 8 gms (depending on the type of sample)
Temperature Control Range 35°C (Ambient) to 300°C
Digital Timer Range : 0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode
Temperature Accuracy / Precision ± 0.5° C
Ramp & Hold Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme.
Presets Select able Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs
Heater Source Casted Aluminium Alloy Heaters
PID Control Fuzzy logic Microprocessor based PID Controller with Auto tuning facility.
Temperature Setting Feather touch membrane keys
PC & Printer Connectivity Direct USB port for PC/Laptop connectivity Intelligent Software for PC compatibility for 2 way Bidirectional communication
Display Bright Digital two line Alphanumeric LCD Digital Display of time and temperature
Extraction Thimbles * Thick Nitrocellulose thimble (f25mm X 80mm) – 1 Box of 25 Nos.
* Highly versatile to accommodate 2 sizes of Thimbles. Optional Macro Thimbles of size (33 mm dia x 80mm L) compatible in the system.
Power Consumption 2000 Watts.
