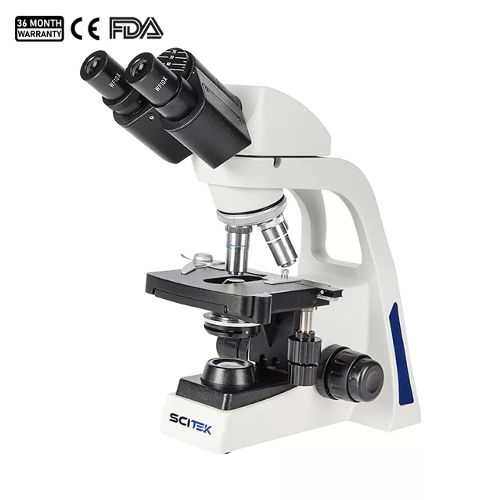

Biological Microscope, D2021 Series

The D2021 Series Biological Microscope is a versatile and user-friendly instrument designed for educational, clinical, and research applications. It offers high-quality optics and ergonomic features, making it suitable for users with varying levels of experience.

Key Features:

• Viewing Head: Available in both binocular (MSC-D2021B) and trinocular (MSC-D2021T) configurations, featuring a 30° inclined gemel head with an adjustable interpupillary distance of 50–75 mm and ±5 diopter adjustment.​

• Eyepieces: Equipped with wide-field eyepieces WF10X/18mm or WF10X/20mm, with optional PL10X/18mm for enhanced viewing

• Objectives: Offers achromatic objectives (4X, 10X, 40X, 100X) and plan achromatic objectives for improved image flatness and clarity

• Optical System: Features a finite color or infinite color-corrected optical system, providing sharp and accurate images.​

• Nosepiece: Equipped with a quadruple nosepiece for easy switching between objectives.​

• Focusing Mechanism: Coaxial coarse and fine focusing with an 8 mm coarse range and 0.004 mm fine precision, including an elastic adjustment device for smooth operation.​

• Stage: Double-layer mechanical stage measuring 115 × 125 mm, allowing precise sample positioning.​

• Condenser: N.A.1.25 Abbe condenser with an iris diaphragm for optimal illumination control.​

• Illumination: Preset wide-voltage illumination system (100V–240V) with a centered output bulb, ensuring consistent lighting conditions.​

• Additional Accessories: Includes transmission filters (blue, yellow, green) and phototube adapters (0.35X, 0.5X, 1X C-mount) for camera integration
