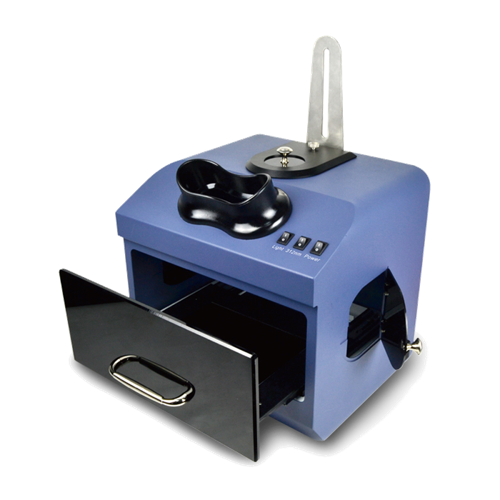

BlueBox UV Visualizer

BlueBox UV Visualizer:

The BlueBox UV Visualizer is a professional, compact visualization system designed to simplify and enhance fluorescence detection and analysis in laboratory settings. Whether you’re working with Thin Layer Chromatography (TLC) plates, DNA/RNA gels, or other fluorescent samples, the BlueBox offers safe, efficient, and high-contrast UV illumination in a fully enclosed environment.

It is a specialized instrument designed for the observation and analysis of thin-layer chromatography (TLC) and high-performance thin-layer chromatography (HPTLC) plates under ultraviolet (UV) light. This device facilitates the detection of substances that exhibit fluorescence or quenching properties when exposed to UV radiation.

Equipped with high-performance UV bulbs or LEDs, the BlueBox is available in multiple wavelength options—254 nm (shortwave), 312 nm (midwave), and 365 nm (longwave)—to suit different applications. Its shielded viewing window protects users from direct UV exposure while allowing clear visual access to glowing bands or spots on your samples.

The enclosed chamber ensures uniform illumination with minimal background interference, making it easier to detect even faint fluorescence. A built-in safety interlock system disables UV light automatically when the chamber door is opened, ensuring compliance with lab safety standards.

Constructed from durable, chemical-resistant materials, the BlueBox is easy to maintain and built to withstand daily use in demanding environments. Its compact, lightweight design makes it ideal for use on benchtops, in mobile lab kits, or in educational settings.

Optional accessories include a digital camera or smartphone mount, enabling users to document results quickly and share images for analysis or recordkeeping.

From quality control labs to university teaching facilities, the BlueBox UV Visualizer is a versatile and reliable tool for any setting that requires safe and effective UV sample visualization.

Features of BlueBox UV Visualizer

• Compact, enclosed UV visualization chamber

• High-intensity UV illumination (254 nm, 312 nm, and/or 365 nm options)

• Ideal for TLC plate examination and gel fluorescence detection

• Shielded viewing window for safe, glare-free observation

• Internal safety switch to disable UV when the door is open

• Chemical-resistant and easy-to-clean housing

• Uniform illumination across the viewing surface

• Low heat emission and energy-efficient operation

• Optional digital camera or smartphone mount for documentation

• Portable design suitable for bench-top and field use

Technical Specifications of BlueBox UV visualizer

Detection area

• 200 x 200 mm

Dimensions (W x H x D)

• 325 x 480 x 290 mm

Weight

• 11.5 kg

1x UV tube 254 nm

1x UV LED 366 nm
