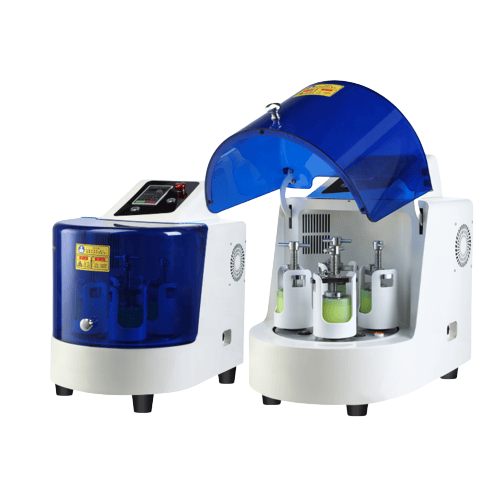

BQM Series Planetary Ball Mill is a powerful desktop operating model with small size, full functions, high efficiency and low noise. It can 4 pots grinding and can produce 4 sample materials at a time. The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times. Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. This series of grinding mill can be equipped with vacuum jars, which can grind samples in a vacuum state. It is very suitable for research tasks such as scientific research institutions, universities, and corporate laboratories from the experimental end to the production end to verify the feasibility of mass production, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials.
Technical Specification of BQM Series Planetary Ball Mill
| Applications | Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry | ||||
| Field of application | New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology | ||||
| Feed material | Soft, hard, brittle, fibrous—dry or wet | ||||
| Size reduction principle | Impact force, friction | ||||
| Material Feed Size | < 3 mm | ||||
| Final Fineness * | Used for colloid grinding, the sample is less than 0.1 micron | ||||
| No. of Grinding Stations | 4 | ||||
| Grinding method | Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding | ||||
| Grinding jar material | Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate | ||||
| Speed ratio | 1 : 2 | ||||
| Operation Mode | 3 types: unidirectional, alternating forward and reverse, multi-stage | ||||
| Storable SOPs | 15 | ||||
| Time setting | Intelligent screen display digital settings，Run/stop time: 0-9999 minutes | ||||
| Power protection | Power-off protection memory self-start function | ||||
| Model | BQM-0.4L | BQM-1L | |||
| Grinding jar capacity | 50-100ml | 50-250ml | |||
| Vacuum jar capacity | 50-100ml | 50-100ml | |||
| Revolution speed | 5-450r/min | 5-450r/min | |||
| Rotation speed | 10-900r/min | 10-900r/min | |||
| Power | 0.55KW | 0.55KW | |||
| Voltage | Single phase, 220V/50Hz | ||||
| Dimension(W x H x D) | 745 x 525 x 580 mm | ||||
| Weight | 55kg | 57kg | |||
| *Affected by sample material properties and instrument configuration/settings | |||||
