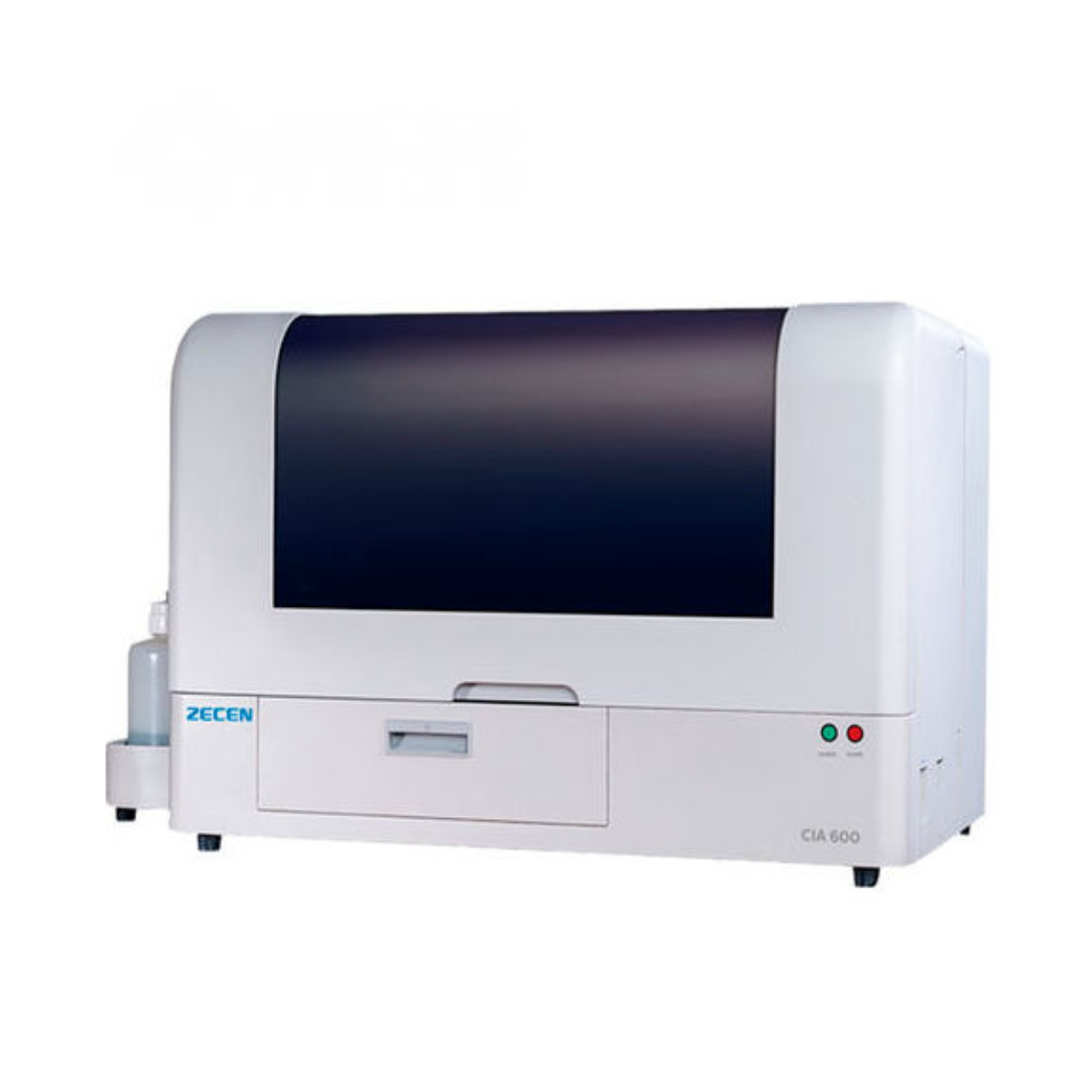

CIA600 Full-auto Chemiluminescence Analyzer

Applications

• Thyroid Function Testing

• Fertility and Hormonal Assays

• Glycometabolism and Bone Metabolism Analysis

• Tumor Marker Detection

• Hepatic Fibrosis Screening

• Prenatal Screening

• Cardiac Marker Evaluation

• Infectious Disease Diagnosis

• Diabetes and Allergy Testing

• Anemia and Kidney Function Assessment

Advantages

• Disposable tip sampling system to avoid cross-contamination
• 24-hour standby, samples can be detected at any time
• Batch processing, STAT
• Liquid level detection, reagent volume monitoring, and failure alarm
• Automatic dilution and the dilution ratio can be set randomly.
• Incubation conditions:37℃ stable.

Key Features

• High Throughput: Processes up to 60 tests per hour, ensuring efficient sample analysis.

• Comprehensive Test Menu: Includes assays for thyroid function, fertility, glycometabolism, bone metabolism, tumor markers, hepatic fibrosis, prenatal screening, cardiac markers, and more.

• Advanced Reagent System: Employs micro superparamagnetic beads and a new APLS substrate, achieving rapid reaction times with a platform stage time of less than 20 seconds.

• Automatic Calibration: Supports both two-point and six-point calibration for precise measurements.

• Continuous Reagent Loading: Allows for the simultaneous loading of 10 reagents, with continuous loading capabilities without interrupting testing.

• Sample Capacity: Accommodates up to 75 samples, with continuous loading without halting the testing process.

• Barcode and RFID Scanning: Facilitates accurate reagent and sample identification.

• LIS Connectivity: Ensures seamless data exchange for efficient laboratory management.

• User-Friendly Interface: Features a touchscreen interface for easy operation and monitoring.

• 24/7 Standby Mode: Enables testing at any time, enhancing workflow flexibility.

• Reagent Loading: 10 kinds of reagents can be loaded at the same time, and continuous loading can be implemented without stopping the test.
• Barcode scanning to load the reagent kits.
• Automatic continuous magnetic bead mixing system.
• Sample Loading: 75 pieces of samples can be loaded at the same time, and continuous loading can be performed without stopping the test process.
• Networking with the LIS connection.
• Compatible with primary collection tubes(75mm/100mm).

Specifications

• Throughput: Up to 60 tests per hour

• Sample Capacity: 75 samples

• Reagent Positions: 10

• Calibration: Two-point and six-point options

• Sample Tube Compatibility: 75mm and 100mm primary collection tubes

• Power Supply: 220V/50Hz

• Dimensions: Compact benchtop design

• Operating Temperature: 20°C to 35°C

• Data Management: LIS connectivity, barcode/RFID scanning, data storage, and retrieval

• Safety Features: Liquid level detection, reagent volume monitoring, failure alarms
