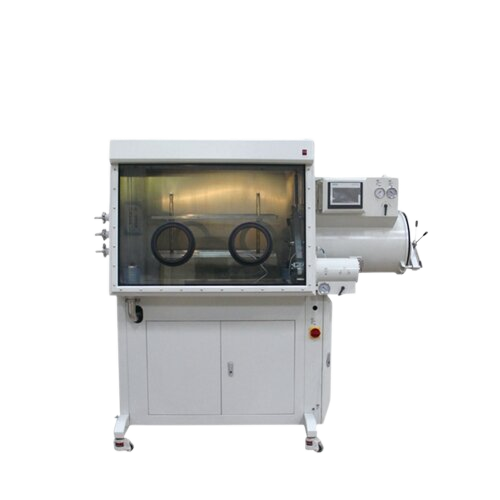

Circulating Purification System Glove Box Single workstation operation, size: Length 1950mm, width 840mm, height 1900mm, integrated single column purification unit, PLC control and touch screen operating system, including a closed main box, with a tilted operating surface and removable safety glass front window, under standard conditions, that is, 20℃ constant temperature, a standard atmospheric pressure, 99.999% inert gas source, Water oxygen index is less than 1 ppm.
Technical Specification of Circulating Purification System Glove Box
| Main components and configuration | |
| Basic configuration | A 304 stainless steel box,1200mm*750mm*930mm, easy to clean the box, there is no dead angle. |
| A lighting system,LED lights with strong and weak light configurations | |
| A lifting system that facilitates the handling of equipment by aerial cranes | |
| A controller system with pressure sensors and water oxygen sensors | |
| A display system,using Siemens PLC Touch Screen 10 inches, English and Chinese operation interface freely switch | |
| A Material transition cabin,∅390*600mm,304 stainless steel,there are moving drawers, equipped with door opening assistance | |
| A gas purification system,Single purification column (GP255):Function:dewatering, deoxidizing | |
| A rack universal casters,the rack is 890mm high and has universal wheels for easy movement of the glove box | |
| 2 HEPA filters，filtration accuracy 0.3μm, adsorption dust, to ensure the smooth gas pipeline | |
| 1 transparent visible panel,thickness 12mm, using double laminated tempered glass | |
| Main parameters | |
| Model | JMT12 |
| Working conditions | Under the standard condition，normal temperature（25°C±5°C） |
| Water oxygen content | ≤1PPM |
| Leakage rate | ≤0.005 vol%/h |
| Noise level | 50-60dB |
| Material transition cabin limit vacuum degree | -0.1Mpa |
| Tool transition cabin limit vacuum degree | -0.1Mpa |
| Glove box under pressure | -200Pa~1200Pa |
| Fan circulation rate | 90㎥/h / 150㎥/h |
