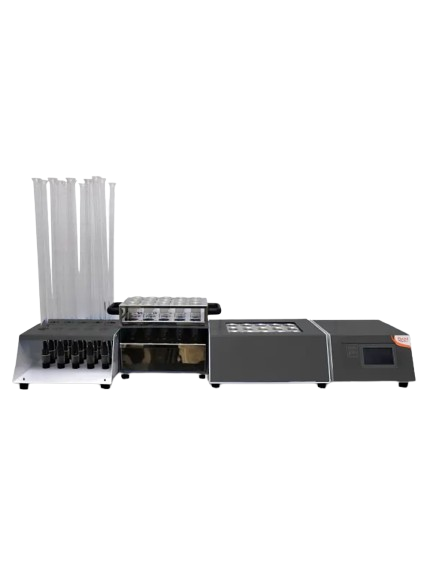

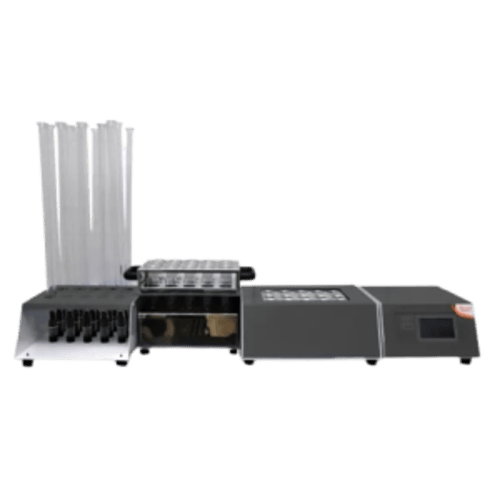

The COD Digestion System is a high-performance laboratory apparatus designed for the rapid and accurate digestion of samples to determine Chemical Oxygen Demand (COD) in water and wastewater. This system simplifies the preparation of samples using closed reflux, colorimetric, or titrimetric methods by providing precise temperature control and uniform heating, ensuring reliable and reproducible results. This device typically uses pre-filled COD reagent vials and operates by heating samples at 150 °C for 2 hours, following standard methods such as USEPA 410.4, ISO 15705, and Standard Methods 5220D. It can digest multiple samples simultaneously (commonly 6, 12, or 25 positions), and often includes features like digital timers, PID temperature controllers, and built-in safety systems. Modern systems may offer automatic shutdown, audible alarms, and chemical-resistant construction, making them ideal for environmental labs, wastewater treatment plants, and educational institutions.
Features of COD Digestion System
- Stainless steel insert rack to handle.
- COD Digestion tubes.
- MS rack to keep Air condensers.
- MS rack with hole to place insert rack with tubes for adding reagents in water.
- Stainless steel water tank.
Technical Specifications
Model | DAN.N15CT.01 (TOUCH SCREEN CONTROLLER) |
No of samples | 15 |
Tube dimension | 36 x 200 mm |
Tube capacity | 150ml |
Tube material | Glass with ground joint |
Reflux condenser | Air condenser with ground joint |
Reflux condenser dimension | 640mm |
Heating block | Extruded Aluminium block |
Well depth | 90mm |
Material of construction of housing | MS with powder coated finish |
Heater | Casted Aluminium alloy Heater |
Heater wattage | 2000 W |
Temperature controller | PID controller |
Process controller | 4.3” TFT with touch screen |
Temperature range | 50 degree to 300 degree |
Temperature accuracy | +/- 1% |
Temperature sensor | K type thermocouple |
Block insulation | Ceramic wool |
No of Programs | 5 program |
No of steps | 5 steps |
Type of program | Time and Temperature |
Feature touch membrane key pad | Power and Heater |
Over voltage protection | By circuit breaker |
Electrical requirement | 230V/50Hz/10A |
Unit dimension | 56 x 14 x 36 Inches (L x B x H) |
