Coupling AS30 and BS35

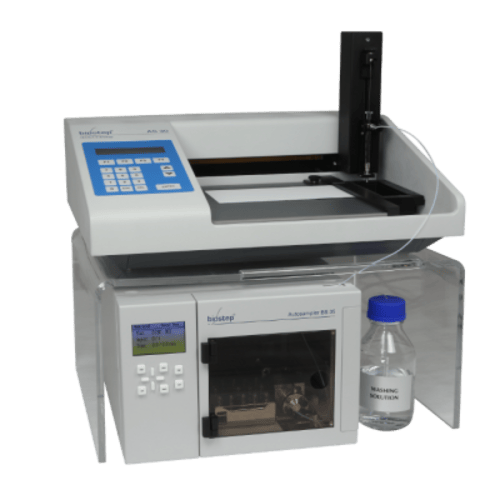

The Autosampler BS35 was especially designed for the coupling with the HPTLC applicator AS30. The autosampler is completely controlled by the AS30. This is very convenient and operating mistakes are led to a minimum. Particularly, at a high sample thoughput, an autosampler is recommended. It allows the operator time to do other things. Thin Layer Chromatography Coupling AS30 and BS35 FullyAutomaticSampleApplicatorFAS305 Application and flushing is done autonomously due to the sample rack which holds up to 80 samples and a storage bottle with the appropriate washing solution. An acrylic glass rack enables the space-saving arrangement of the instruments whereas the autosampler is situated below the rack and AS30 above. A PTFE capillary feeds the sample solution to the AS30 on a very short way

Technical Specifications of Coupling AS30 and BS35

Streak length

• 0 – 100 mm in steps of 0.1 mm

Dimensions (W x D x H)

• 500 x 380 x 180 mm

Weight

• 12 kg

Necessary air pressure

• 2.5 – 10 bar

Resolution

• 2,000 steps

Turret movement

• 40 mm/s, 13 steps/mm
