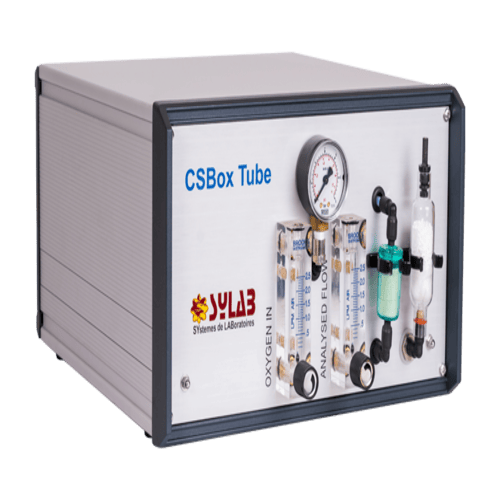

CSBox Tube CS Analyzer is used to determine Carbon and Sulfur in Organic samples like Coal, Coke, fuel oils, soil, Waste samples, Biomass and other Organic samples. The analyzer provides simultaneous Carbon and Sulfur determination with minimal sample preparation. It consists of two independent IR cells with a wide measuring range of Carbon and Sulfur. The measuring range of each IR cell is modified to the user’s specific requirement to ensure optimum measurement conditions for each application. CSBox Tube is supplied with a comprehensive software package which includes statistical reports, diagnostics features and other functions.
Features of CSBox Tube CS Analyzer
- Unique user-friendly design where the furnace is isolated from the Infrared analyzer to improve the life of the NDIR analyzer
- High-efficiency horizontal resistance tube furnace
- Programmable furnace temperature and ramp rate
- Customized IR cells provide a wide, dynamic measuring range
- Fast and simultaneous analysis of Carbon and Sulfur
- Wide measuring range from 50 ppm to 100%
Technical Specifications
| Furnace | Horizontal Tube furnace |
| Heating Elements | Resistance type Silicon Carbide Heating Elements |
| Maximum Temperature | Up to 1500°C |
| Temperature Accuracy | ± 2°C |
| Detector | Non-Dispersive Infrared Detection |
| Measuring Range | Carbon: 0.005 to 100% using 1g to 40 mg Sample |
| Analysis Time | Sulfur: 0.005 to 100% using 1g to 40 mg Sample 60 Sec to 180 sec |
| Sample Weight | 20 to 2000 mg Nominal Sample Weight is 100 mg (coal) |
| Required Chemicals/ Reagents | Magnesium perchlorate (Anhydrone) Glass Wool |
| General Requirements | |
| Ambient Conditions | 15 to 35°C |
| Relative Humidity | 20 – 80% (not condensing) |
| Power Supply | 230V AC ± 10%; 50/60Hz; 16 A |
| Gases | Oxygen 99.95% purity |
