DCAT 15 Tensiometers

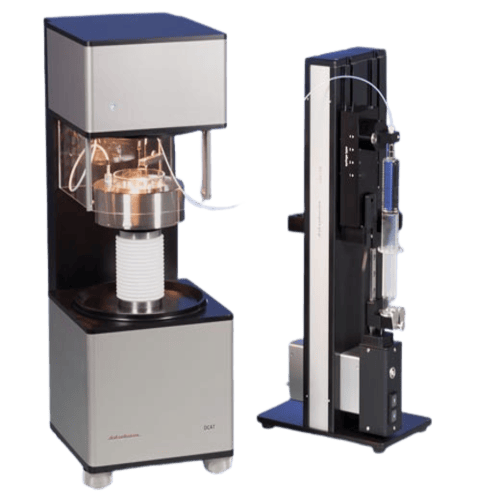

The DCAT 15 Tensiometers enables additional measuring methods and hence can be used to determine dynamic contact angles, the surface energy of solids or sedimentation and penetration properties. In addition the DCAT 15 can be extended with a liquid dosing unit LDU 25 and can thus create sequential concentration series of, for example, surfactant solutions. Without manual user intervention the critical micelle concentration (CMC) can be determined software controlled in a series of experiments.

Features of DCAT 15 Tensiometers

• Electrodynamic compensation weighing system with automatic and manual calibration function
• Software controlled, motor-driven height positioning of the sample receptacles with variable speed
• Automatic coupling lock for the balance
• Automatic crash protection for measuring probes during measurement
• Illuminated sample chamber
• Integrated magnetic stirrer
• Digital thermometer with connections for two Pt 100 temperature sensors
• Compatible with the liquid dosing unit LDU 25

Technical Specification

Weighing range

Resolution; accuracy

Measuring value rate [values/s]

• up to 100

Surface and interfacial tension

• ○

Measuring range

• 1 … 2000 mN/m

Resolution

Ring correction options

• Huh-Mason, Zuidema-Waters, Harkins-Jordan, Lunkenheimer factor, linear, polynomial, none

Density determination

Liquid density

• ○

Solid density

• ○

Measuring range

• 0.001 … 2.50 g/cm3

Resolution

• 0.001 … 2.50 g/cm3

Dynamic contact angle

• ○

Measuring range

Resolution

Automated CMC determination

• ○

Sedimentation and penetration

• ○

Adhesion

• ○

Upgrade video system UpVideo DCAT

• ―

Surface pressure

• ―

pH value measurement

• ○

Sample stage

• motorised with automatic crash protection

Traversing range

Traversing speed

• 46 nm/s … 12 mm/s

Travel resolution

• 24 nm

Temperature control

via liquid circulator (-10 … 130 °C)

• ○

via Peltier element (-15 … 135 °C)

• ○

via electric heating chamber (RT…300 °C)

• ―

2 x Pt100 inputs for –60 … +450 °C ± 0.01 K

• ●

Multilingual Software

• English, German, French, Chinese

Compliance with international standards

• a comprehensive list can be found online: www.dataphysics-instruments.com/standards/

TP 50 control panel

• ○

Automatic stirrer

• ● (magnetic)

Balance calibration

• automatic internal and external with reference weights

Dimensions (L [mm] x W [mm] x H [mm])

• 271 x 246 x 523

Weight [kg]

• 16

Power supply

• 100 … 240 VAC; 50 … 60 Hz; 70 W



● integrated    ○ with optional software/accessory    ― not available
