DCAT?25SF Tensiometers

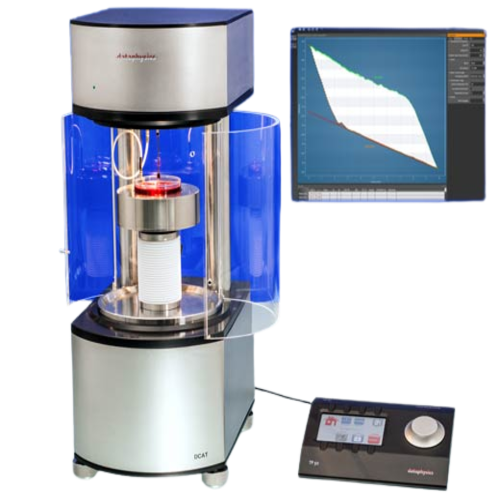

​The DCAT 25SF Tensiometers is a specialized dynamic contact angle measuring instrument and tensiometer developed by DataPhysics Instruments, meticulously designed for high-precision analysis of single fibers. Building upon the robust foundation of the DCAT 25, the 25SF variant incorporates advanced features to facilitate accurate measurements on delicate samples such as carbon or glass fibers.

Features of DCAT 25SF Tensiometers

• electrodynamic compensation weighing system of highest resolution with automatic and manual calibration function
• software controlled, motor-driven height positioning of the sample receptacles with variable speed
• automatic coupling lock for the balance
• automatic crash protection for measuring probes during measurement
• closed illuminated sample chamber
• digital thermometer with connections for two Pt 100 temperature sensors
• includes a TP 50 control panel with touch screen and precision control wheel
• compatible with the liquid dosing unit LDU 25
• compatible with the Langmuir trough module LTMr

Technical Specification

Weighing range

• 1 μg … 10 g

Resolution; accuracy

• 0.1 μg; ± 3 μg

Measuring value rate [values/s]

• up to 50

Surface and interfacial tension

• ○

Measuring range

Resolution

• ± 0.001 mN/m

Ring correction options

• Huh-Mason, Zuidema-Waters, Harkins-Jordan, Lunkenheimer factor, linear, polynomial, none

Density determination

Liquid density

• ○

Solid density

• ―

Measuring range

Resolution

Dynamic contact angle

• ○

Measuring range

Resolution

Automated CMC determination

• ○

Sedimentation and penetration

• ―

Adhesion

• ―

Upgrade video system UpVideo DCAT

• ―

Surface pressure

• ○

pH value measurement

• ○

Sample stage

• motorised with automatic crash protection

Traversing range

• 105 mm

Traversing speed

• 46 nm/s … 12 mm/s

Travel resolution

Temperature control

via liquid circulator (-10 … 130 °C)

• ○

via Peltier element (-15 … 135 °C)

• ○

via electric heating chamber (RT…300 °C)

• ―

2 x Pt100 inputs for –60 … +450 °C ± 0.01 K

• ●

Multilingual Software

• English, German, French, Chinese

Compliance with international standards

• a comprehensive list can be found online: www.dataphysics-instruments.com/standards/

TP 50 control panel

• ●

Automatic stirrer

• ○ (magnetic)

Balance calibration

• automatic internal and external with reference weights

Dimensions (L [mm] x W [mm] x H [mm])

• 360 x 230 x 565

Weight [kg]

• 24

Power supply

• 100 … 240 VAC; 50 … 60 Hz; 70 W



● integrated    ○ with optional software/accessory    ― not available
