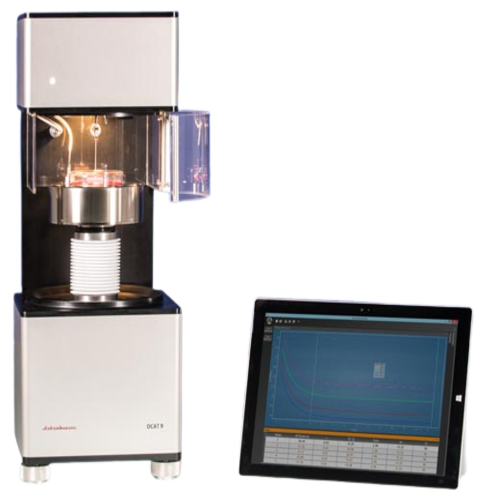

DCAT 9 Tensiometers

​The DCAT 9 Tensiometers is a fully automated tensiometer developed by DataPhysics Instruments, designed for precise, weight-based measurements of surface and interfacial tension, as well as the density of liquids and solids. As a powerful entry-level model in the DCAT series, it offers a comprehensive solution for researchers and professionals in surface science, materials testing, and quality control.

Features of DCAT 8 Tensiometers

• Electrodynamic compensation weighing system with automatic and manual calibration function
• Software controlled, motor-driven height positioning of the sample receptacles with variable speed
• Automatic coupling lock for the balance
• Automatic crash protection for measuring probes during measurement
• Illuminated sample chamber
• Integrated magnetic stirrer
• Digital thermometer with connections for two Pt 100 temperature sensors
• Liquid temperature control unit TV 70 with Pt 100 probe

Technical Specification

Weighing range

• 100 μg … 220 g

Resolution; accuracy

• 100 μg; ± 100 μg

Measuring value rate [values/s]

• up to 10

Surface and interfacial tension

• ○

Measuring range

Resolution

• ± 0.01 mN/m

Ring correction options

• Huh-Mason, Zuidema-Waters, Harkins-Jordan, Lunkenheimer factor, linear, polynomial, none

Density determination

Liquid density

• ○

Solid density

• ○

Measuring range

Resolution

Dynamic contact angle

• ―

Measuring range

• ―

Resolution

• ―

Automated CMC determination

• ―

Sedimentation and penetration

• ―

Adhesion

• ―

Upgrade video system UpVideo DCAT

• ―

Surface pressure

• ―

pH value measurement

• ○

Sample stage

• motorised with automatic crash protection

Traversing range

• 80 mm

Traversing speed

Travel resolution

Temperature control

via liquid circulator (-10 … 130 °C)

•  ―

via Peltier element (-15 … 135 °C)

• ―

via electric heating chamber (RT…300 °C)

• ―

2 x Pt100 inputs for –60 … +450 °C ± 0.01 K

• ―

Multilingual Software

• English, German, French, Chinese

Compliance with international standards

• a comprehensive list can be found online: www.dataphysics-instruments.com/standards/

TP 50 control panel

• ○

Automatic stirrer

• ● (magnetic)

Balance calibration

• automatic internal and external with reference weights

Dimensions (L [mm] x W [mm] x H [mm])

• 271 x 246 x 523

Weight [kg]

• 15

Power supply

• 100 … 240 VAC; 50 … 60 Hz; 70 W



● integrated    ○ with optional software/accessory    ― not available
