Densitometric Scanner CD60:

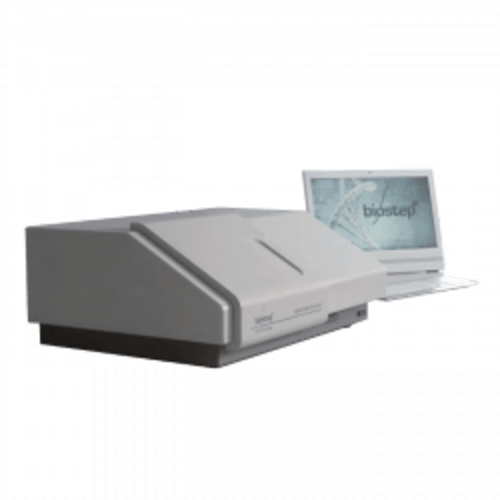

The Densitometric Scanner CD60 is a precision instrument built upon over 20 years of expertise in optical measurement technology. Designed using the latest advancements in densitometry, this scanner offers high-performance capabilities for both research and industrial applications. It features a user-friendly interface controlled by a PC, which manages all densitometric functions seamlessly.

Advanced Measurement Capabilities

The CD60 is capable of performing absorbency and fluorescence measurements in both reflectance and transmittance modes. It supports object dimensions of up to 265 x 200 x 4 mm, making it ideal for a wide range of sample types.

The scanner is equipped with three interchangeable light sources to cover a broad spectral range:

• Deuterium lamp (190–340 nm)

• Halogen lamp (340–900 nm)

• Mercury lamp

Together, these provide a usable spectral range of 190 to 900 nm. The system automatically switches between the monochromator, lamps, and filters, ensuring accurate and efficient measurements.

Adjustable Scanning Beam

A unique feature of the CD60 is its PC-controlled scanning light beam, which allows users to adjust the beam’s size to match specific requirements. Users can choose slit widths ranging from 0.4 to 10 mm and slit heights from 20 µm to 2 mm, offering precision scanning for varied applications.

Software Integration

The CD60 operates seamlessly with ProQuant software, a powerful tool that enhances data acquisition, analysis, and reporting. This integration enables the scanner to serve a wide array of densitometric tasks across scientific and quality control environments.

Applications

Thanks to its flexibility and precise measurement capabilities, the Densitometric Scanner CD60 is widely used in:

• Material science

• Biomedical research

• Quality control laboratories

• Industrial production monitoring
