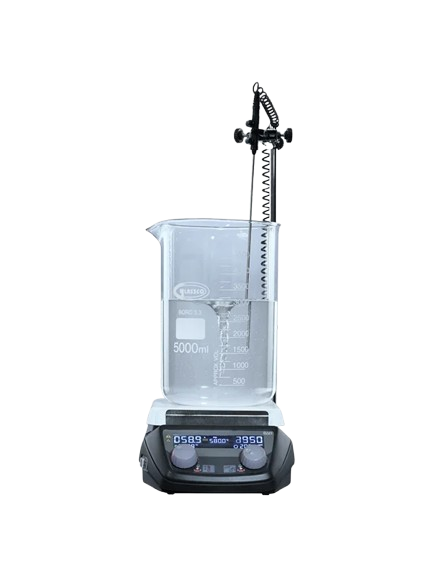

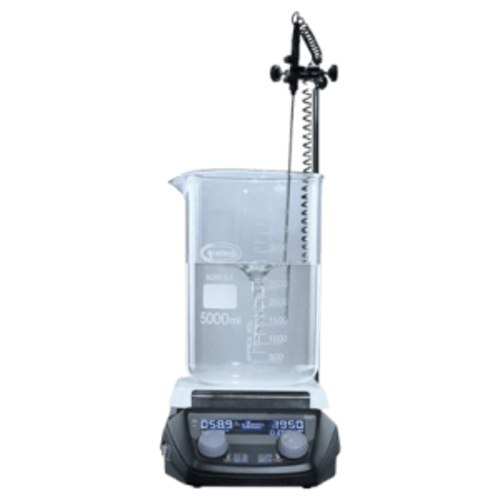

The Digital Magnetic Stirrer with Hotplate (LCD Display) is an advanced laboratory instrument designed for precise and efficient stirring combined with controlled heating of liquid samples. Featuring a clear, user-friendly LCD display, this device provides real-time digital readouts of stirring speed and temperature, allowing accurate adjustments and monitoring. Equipped with a high-quality ceramic-coated or stainless steel hotplate, the unit offers fast and uniform heating with excellent chemical resistance. The digital interface allows for fine control over parameters, ensuring consistent experimental conditions and reproducibility. The stirrer uses a brushless DC motor for smooth, quiet, and maintenance-free operation. It also incorporates PID temperature control for stable and accurate heating and includes safety features such as over-temperature protection and automatic shutoff to prevent accidents and equipment damage. Ideal for applications in chemistry, biology, pharmaceuticals, and research labs, it supports a wide range of stirring volumes and liquid viscosities.
Features of Digital Magnetic Stirrer with Hotplate (LCD Display)
- Independent control for heating & stirring
- Powerful 1300 W heater, biggest in class, gives results quickly.
- Supplied with Accessories, Probe based thermal control best for direct media temperature control.
- 7X7 inch Glass Cera top supports large vessels upto 5 Ltr.
- Pt1000 for higher accuracy.
RELIABILITY DURABILITY - Hot Top warning, very safe for users.
- Precise, microcontroller-based temperature control in both C & F
- Indicates errors automatically in Display.
- Interface easy to use.
- Rugged against spillages. Patented spill away design
- PU coated body, made from AL Alloy gives infinite rust/damage free life
- Can carry 25 KG weight
- BLAC motor withstands
- Voltage fluctuations & highly durable
Technical Specification
Heating Plate Material | Glass Ceramic Top Plate |
Dimension of Heating Plate | 180 mm x 180 mm |
Display Windows | LCD WHITE |
Speed Range | ~2000 RPM |
Heat Output | 1300 W |
Temperature Range | Ambient to 550°C |
Adjustable safety cut off | 580°C |
Control accuracy of sensor | ± 1K |
Weight of body | 5.2 kgs |
Permissible ambient Temp. | 5 – 40°C |
Permissible relative moisture | 80% |
Dimensions of Hot Plate Body | 378x220x103 |
IP Class | 21 |
