Features

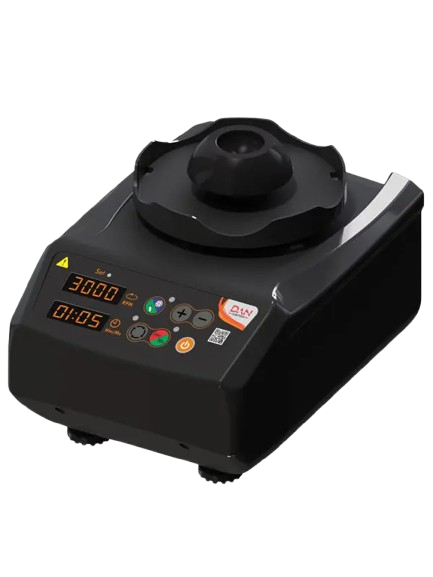

Compact, universal small shaker suitable for shaking tasks with all small vessels with adapters and microtiter plates
- Sturdy Aluminum die cast casing
- PU Coated aluminum Alloy Construction
- 2 in 1 vortex with shot mode & shaking mode gives result quickly
- Support thirteen different adaptors
- Wide range of attachments available
- Timer & countdown functions make it versale
- Stable in all speed ranges
- Continuous or touch/shot operation (with standard attachment)
- Audible timer by pass mode for uninterrupted non stop use
Uses
The Mini Shaker is generally used in Pharmaceuticals, Chemistry and Biology Laboratories to mix liquids. The Mini shaker is suitable for shaking tasks with all small vessels and microtiter plates.
Technical Specifications
| Type of movement | Orbital |
| Orbit/Shaking Stroke | 3 mm |
| Permissible orbit weight (incl. attachment) | 0.5 kg |
| Permissible ON time | 100% |
| Speed min (adjustable) | 200 rpm |
| Speed range | 200 – 3000 rpm |
| Speed display | LED |
| Speed deviation | 1% |
| Timer | yes |
| Timer display | LED |
| Time setting min. | 1 s |
| Time setting max. | 100 Hrs |
| Operating mode | Timer and Continuous Operation |
| Touch/shot function | yes |
| Working with microtiter plates | yes |
| Number of microtiter plates | 1 |
| Dimension | 150x207x111mm (WxDxH) |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80% |
| Protection class according to DIN EN 60529 | IP 21 |
| Adaptors | Available |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 10 W |
| DC Voltage | 24 V |
| Weight | 3.8 Kgs |
| IP Class | 21 |
