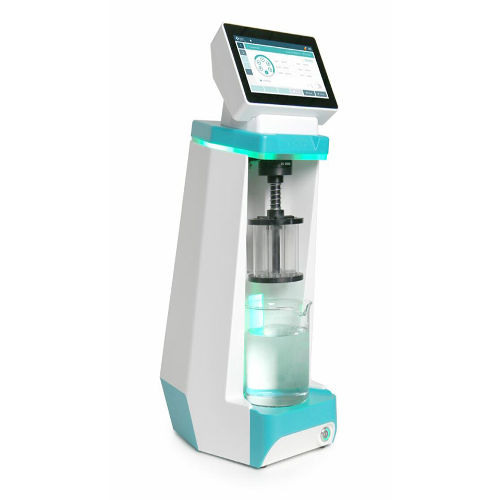

DISI Evo Brand New Disintegration Tester:

The DISI Evo Disintegration Tester is a cutting-edge, bathless disintegration tester designed for fast, precise testing of tablets and capsules. With advanced technology, user-centric design, and full compliance with industry regulations, the DISI Evo is ideal for R&D labs, production environments, and quality control units.

Key Features of the DISI Evo Disintegration Tester

• Suitable for tablet and capsule disintegration testing

• Intuitive touchscreen interface for easy operation

• Fully compliant with FDA 21 CFR Part 11 (optional)

• 100% unattended endpoint detection for each tablet

• Real-time height monitoring for coated or layered tablets

• The automatic test starts at a target temperature

• Wireless, self-centering baskets for greater accuracy

• Modular configuration: up to 4 testing stations

Advanced Heating and Temperature Control

Unlike traditional systems, the DISI Evo disintegration tester uses bathless induction heating, rapidly bringing the medium to 37°C. This allows for shorter heating times and continuous temperature monitoring, ensuring precise test conditions for both tablet disintegration and capsule disintegration procedures.

Real-Time Tablet Height Monitoring

The DISI Evo measures the residual height of tablets during each upward stroke using patented electromagnetic field attenuation technology. This eliminates the need for specialized discs—especially valuable for coated tablets and capsules with shell residues.

Two Basket Options for Flexibility

• A-Type Basket: For tablets smaller than Ø 18 mm

• B-Type Basket: For tablets larger than Ø 18 mm

Each basket can be easily dismantled for quick cleaning and reused, minimizing maintenance downtime.

Dual Operation Modes

Operate the DISI Evo via:

1. PH21 PC Software on Windows (ideal for advanced users)

2. Touchscreen HMI Display with a high-resolution 1024×600 capacitive screen

Both modes comply with FDA 21 CFR Part 11, offering customizable access controls, secure audit trails, and detailed logging.

Smart Display and User Interface

The optional HMI control unit can be mounted on top or in front of the device. It provides easy navigation, full test status visibility via a 360° LED ring, and instant access to test results—ideal for busy labs.

Comprehensive Data Management

• Unlimited storage for test methods and product records

• Assign specific test methods to products

• View and print graphical and tabular reports

• Export reports as PDFs or save to USB/network folders

• Auto-backup functionality for data security

Built-In Information Center

DISI Evo’s Information Center provides an overview of alerts and unresolved issues, including expired calibrations, failed test exports, and more. Each warning links directly to its cause for fast resolution.

Why Choose DISI Evo?

Whether you’re conducting disintegration tests for capsules or developing new tablet formulations, the DISI Evo disintegration tester offers unmatched precision, automation, and data integrity. Its innovative design ensures regulatory compliance, ease of use, and high throughput—making it an essential tool for any modern lab.
