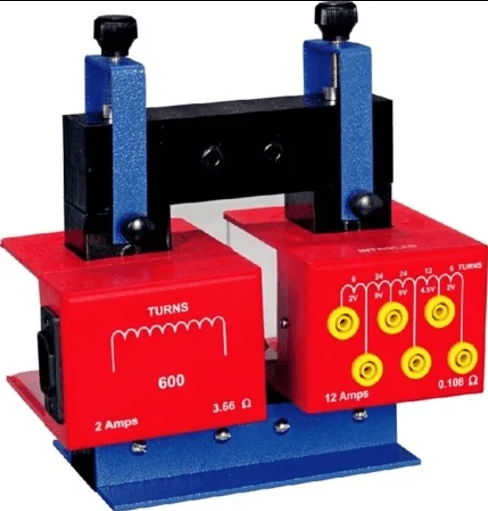

Dissectible Transformere With Complete Components

Following components are included in the apparatus:

Laminated U-Core – 1 No.

Laminated I-Core – 1 No.

Stand for Dissectible Transformer: Cast metal stand consisting of a stable, non-skid heavy base with two removable clamping arms at the top.

Soft iron Pole Pieces – 2 Nos.

One coil of 6000 turns, maximum current 0.2A with one intermediary output corresponding to 2000 turns.

One coil of 600 turns, maximum current 0.25A. Mainly to create the transformer primary. Provided with mains power connection.

One coil of 1200 turns, maximum current 1.25A, with intermediary outputs corresponding to 400 and 800 turns.

One coil of 72 turns maximum current 12A, with intermediary outputs corresponding to 6, 30, 54 and 66 turns.
