Electromagnetic Field Experiment

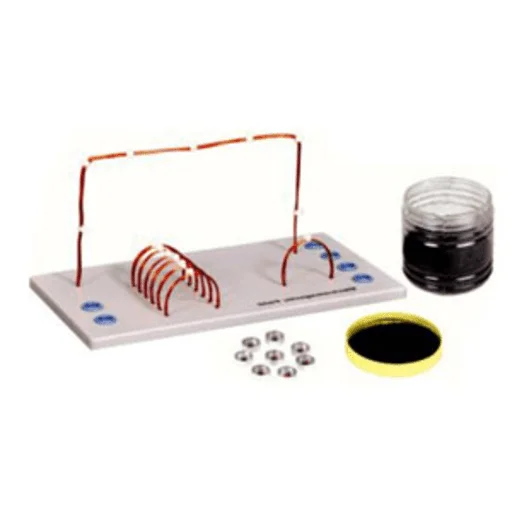

Demonstrates the field patterns associated with different shapes / configurations of current carrying conductor – rectangular, circular loop and solenoid, mounted on moulded plastic case. Each configurations consists of 6 turns of 0.6mm copper wire with 4mm safety sockets. Operates on 6V DC, 8A max. Also included are iron filling and a set of 8 magnetic compass of 18mm.
