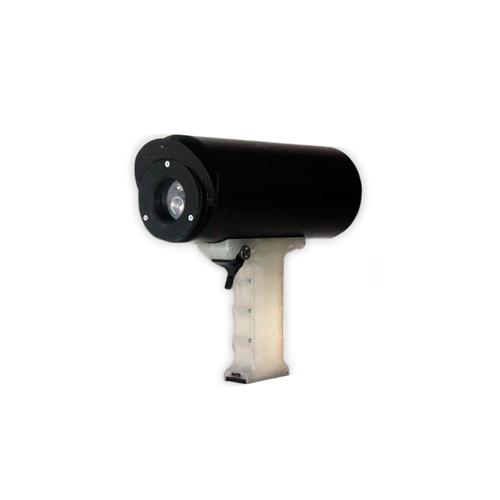

ElvaX Geo XRF Spectrometer – Advanced Portable Analyzer for Mining and Environmental Applications
The ElvaX Geo XRF Spectrometer is a state-of-the-art portable energy-dispersive X-ray fluorescence (EDXRF) analyzer designed specifically for the mining industry, geological exploration, and environmental monitoring. Its robust construction and advanced analytical capabilities make it an indispensable tool for on-site elemental analysis of various materials, including soils, sediments, and ores.
Equipped with a powerful digiX-50 digital X-ray source and a high-resolution Silicon Drift Detector (SDD), the ElvaX Geo delivers exceptional accuracy and speed, boasting a throughput exceeding 500,000 counts per second. Its unique 800 mm² analytical spot increases the averaging of inhomogeneous samples, ensuring reliable results even in challenging field conditions.
The spectrometer’s ergonomic design includes a composite pole, allowing for comfortable operation and access to hard-to-reach areas. An integrated Personal Digital Assistant (PDA) with a protective enclosure enables seamless operation in extreme climatic conditions. The ElvaX Geo also supports integration with external GPS modules via Bluetooth, facilitating geospatial data mapping and analysis.
Operating on Windows EC7, the ElvaX Geo utilizes both Fundamental Parameters (FPA) and Empirical Calibration Methods, providing flexibility and precision in elemental analysis. Its software allows users to perform in-depth analysis of XRF spectra and create custom calibrations, enhancing its adaptability to specific site requirements.
With its compact dimensions (242 x 236 x 90 mm) and lightweight design (2 kg), the ElvaX Geo is easily transportable and comes with a watertight case, holster for carrying, composite pole, and laboratory stand, ensuring durability and convenience for field operations.
ElvaX Geo offers you accurate data and ease of operation during geo-exploration or quality assurance. The instrument is designed specifically for long non-stop convenient operation. The unique 800 mm2 analytical spot analysis increases averaging of inhomogeneous samples. A composite pole helps you keep a comfortable body position during operation and enables to analyze hard-to-reach places. This form factor allows for uninterrupted measurement during slow walking while measurement results are communicated to the operator through headphones. ElvaX Geo is operated through a PDA in a protective enclosure, which can be put underneath outer garment in case of extreme climatic conditions. The Li-Ion Battery can be hidden as well.
Benefits
- Fundamental parameters analysis of unknown samples without empirical calibration. User Factor Calculation Method enables to enhance analysis accuracy for a specific site.
- Averaging function to minimize error during analysis of inhomogeneous samples.
- With the help of a laboratory stand, ElvaX Geo is transformed into a desktop instrument working with ElvaXTM PC software.
- ElvaX software allows not only to perform in-depth analysis of XRF spectra but enables to create calibrations of your own.
- ElvaX Geo supports integration with an external GPS module via Bluetooth. The Acquired data can then be used in a GIS.
- The analyzer comes with the watertight case, holster for carrying, composite pole, and laboratory stand.
Technical Specifications
Digital X-Ray Source digiX-50
- Anode: W
- Voltage: 50 kV
- Current: 200
- Power: 10 W
- Spot size: 800 mm2
X-Ray Detector
- Type: CSA SDD
- Active area: 30 mm2 (option 70 mm2)
- Energy resolution: <145 eV @ 5.9 keV
- Count rate: 500 000 cps
Electronics
- DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
- MCA: 4096 channels
- Display: 4.3″
General
- Dimensions: 242 х 236 х 90 mm
- Weight: 2 kg
- Protection: IP67
Software
- Operating system: Windows EC7
- Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
