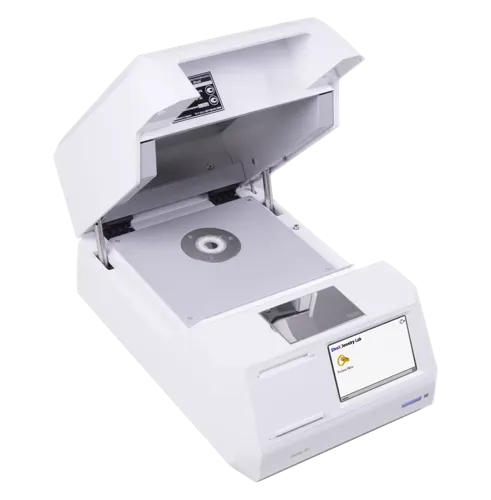

ElvaX Jewelry Lab


ElvaX Jewelry Lab is a high-precision jewelry and precious metal analyzer, offering rapid results in percent share and karats. It detects coatings, nonstandard alloys, and features an integrated touchscreen, CCD camera, automatic collimator changer, scales, and a printer for certification. A rechargeable battery enables field analysis.

Compare

ElvaX Jewelry Lab XRF Spectrometer – Precision Gold and Silver Testing for Jewelers

The ElvaX Jewelry Lab XRF Spectrometer is a specialized benchtop analyzer designed for high-accuracy analysis of precious metals and jewelry. Utilizing advanced X-ray fluorescence (XRF) technology, it delivers rapid, non-destructive testing, providing results in both karats and percentage composition within seconds .

Equipped with a digiX-40 digital X-ray source and a high-resolution SDD detector, the ElvaX Jewelry Lab ensures precise detection of elements, including the ability to identify coatings and non-standard alloys . Its integrated CCD camera and automatic collimator changer allow for accurate targeting and analysis of specific areas on a sample, enhancing the reliability of results .

The device features an intuitive touchscreen interface and can operate autonomously or be connected to a PC with ElvaX™ software installed . Additional functionalities include integrated high-accuracy scales and a built-in printer, enabling users to generate analytical certificates detailing chemical composition, weight, and even price

Designed for both in-store and field use, the ElvaX Jewelry Lab is compact (280 x 385 x 200 mm) and lightweight (7 kg), with a rechargeable Li-ion battery providing up to 6 hours of continuous operation . Its ergonomic design, leaded glass window, and customer-facing display make it an ideal solution for jewelry shops seeking to offer transparent and trustworthy precious metal analysis

ElvaX Jewelry Lab is aimed on high-accuracy analysis of jewelry and precious metals. Measurement process only takes several seconds. The result is shown in both percent share and karats. ElvaX Jewelry Lab is also capable of detecting coatings and nonstandard alloys. This instrument can be operated either using the embedded computer with the high-resolution touchscreen display, or using a PC with ElvaX  software installed. The integrated CCD camera makes it possible to target the required spot of the sample undergoing analysis. Automatic collimator changer allows you to select the required measurement spot diameter. ElvaX Jewelry Lab has integrated high accuracy scales and an integrated printer, which allows the user to print out analytical certificates containing chemical composition, weight and even price. An integrated rechargeable Li-ion battery allows the analysis in the field.

Benefits of ElvaX Jewelry Lab

  • High speed and accuracy
  • Intuitive interface
  • Autonomous operation as well as connected to a PC
  • Coatings detection
  • Compact, doesn’t take much space on a desk or a counter
  • Ergonomic design with a LED lighting looks very nice in a jewelry shop
  • Leaded glass to keep analyzed items always in sight
  • Customer display – sample’s weight and chemical composition are seen by customer during measurement

Digital X-Ray Source digiX-40

  • Anode: W
  • Voltage: 40 kV
  • Current: 200 uAmp
  • Power: 4 W
  • 5 position collimator changer from 1 to 6mm

X-Ray Detector

  • Type: CSA SDD (optional Si-PIN)
  • Area: 30 mm2 (6 mm2 for Si-PIN)
  • Energy resolution: 140 eV (165 eV for Si-PIN) at Mn Kα

Electronics

  • DPP: proprietory DAS (Dynamically Adaptive Shaping) type
  • MCA: 4096 channels

General

  • Dimensions: 280 х 385 х 200 mm
  • Analytical chamber: 185 x 212 x90 mm
  • Weight: 7 kg
  • Power supply: 90 – 240 V, 50/60 Hz
  • Power consumption: 40 W
  • Battery: 6 hours continuous operation

Software

  • Operating system: Windows EC
  • Analysis algorithm: Fundamental parameters (FPA)

Connectivity

  • Data transfer: 2 USB ports, Micro SD, Ethernet
  • Data input: Keyboard and mouse can be connected for data input
