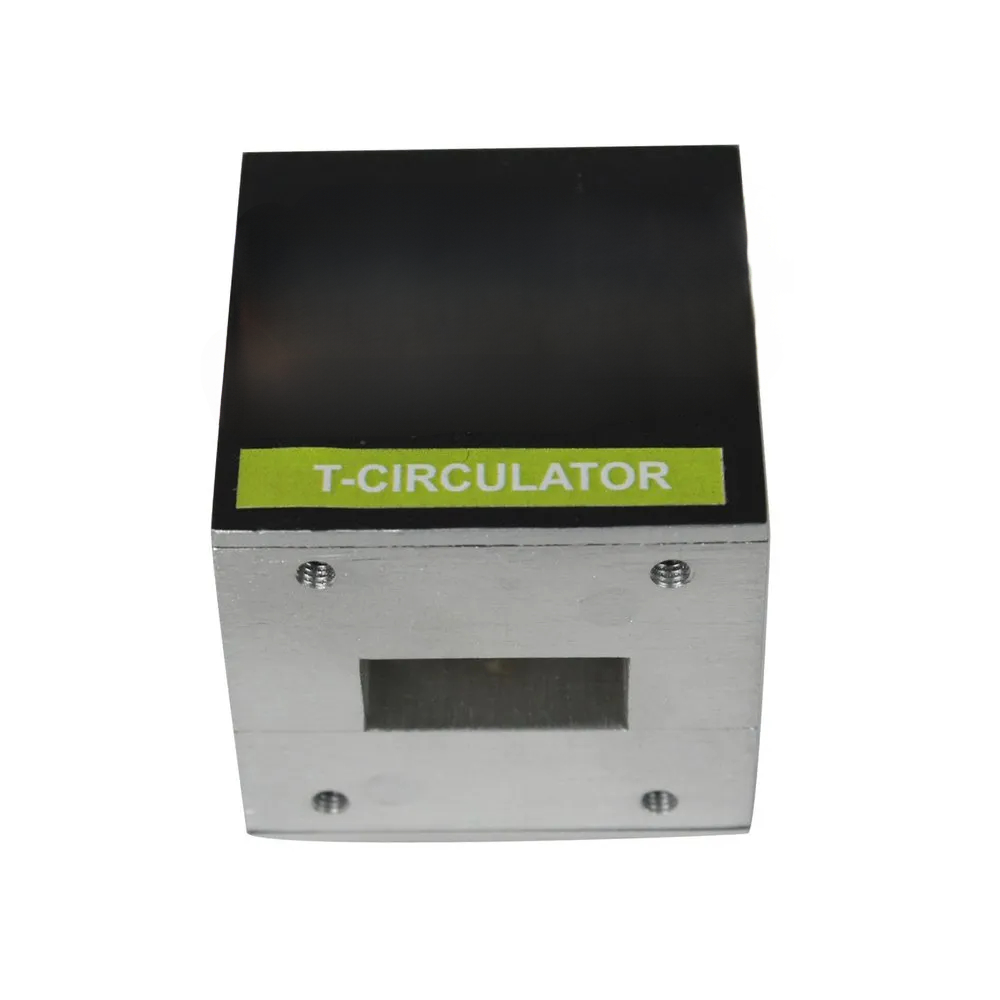

Ferrite Isolator T-Circulator

Features Of  Ferrite Isolator T-Circulator

• Non-Reciprocal Signal Flow

  • Uses ferrite material and an external magnetic field to ensure signal flows in a specific direction.

• Three-Port Configuration (T-Circulator)

  • Port 1 → Port 2 (Forward Transmission)
  • Port 2 → Port 3 (Forward Transmission)
  • Port 3 → Port 1 (Forward Transmission)
  • Prevents unwanted feedback by ensuring minimal signal flow in the reverse direction.

• Isolation & Low Insertion Loss

  • Provides high isolation between ports to prevent interference.
  • Offers low insertion loss, ensuring minimal signal attenuation.

• Frequency Range

  • Operates in a wide range of microwave frequencies (GHz range), depending on the design.

• High Power Handling

  • Designed to handle high RF power without signal degradation.

• Compact & Robust Design

  • Available in coaxial, waveguide, or microstrip configurations.
  • Suitable for integration into RF/microwave systems.

• Temperature Stability

  • Works efficiently across a wide range of temperatures, making it ideal for aerospace and military applications.

• Common Applications

  • Radar Systems
  • Satellite Communications
  • Wireless and RF Communication Systems
  • Test and Measurement Equipment
