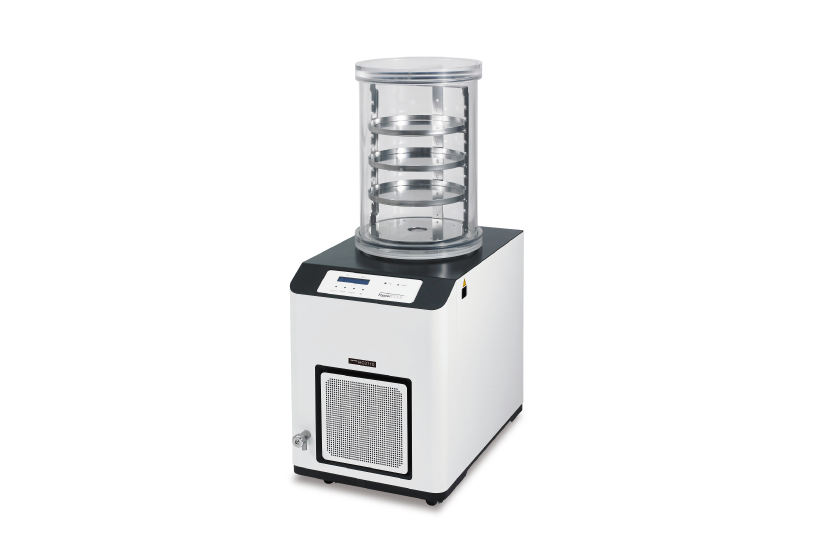

Freeze Dryer HC3110


The HC3110 Freeze Dryer is a high-capacity lyophilization system designed for pharmaceutical, food, and research applications. It features precise temperature control, efficient drying, and a user-friendly interface for reliable performance.

Compare

HC3110 Freeze Dryer – High-Capacity, Precision Lyophilization

The HC3110 Freeze Dryer is designed for high-performance, large-scale lyophilization, making it the ideal solution for pharmaceutical, biotechnology, food, and research applicationsAdvanced temperature and vacuum control ensure consistent drying results, preserving the integrity, potency, and quality of sensitive materials.

Key Features of Freeze Dryer HC3110

  • High-Capacity Drying Chamber – Designed for large-scale production and bulk processing.
  • Precision Temperature & Vacuum Control – Ensures uniform, efficient moisture removal for optimal freeze-drying.
  • User-Friendly Touchscreen Interface – Intuitive controls with real-time monitoring and customizable settings.
  • Energy-Efficient & Reliable Operation – Optimized for long-term durability and cost-effective performance.
  • Versatile Applications – Ideal for pharmaceuticals, food preservation, industrial, and research use.
  • Effective for fast freeze drying of any samples
  • HyperVAC-MAX, empowered by HyperCOOL, guarantees capacity and performance at a higher level.
  • HyperCOOL, by itself, when equipped with manifolds or chambers, becomes a versatile freeze dryer.
  • Extended applications for concentrating a wider range or larger volume of solvents.
  • The compatible vacuum rotary vane pump generates a vacuum inside the chamber.

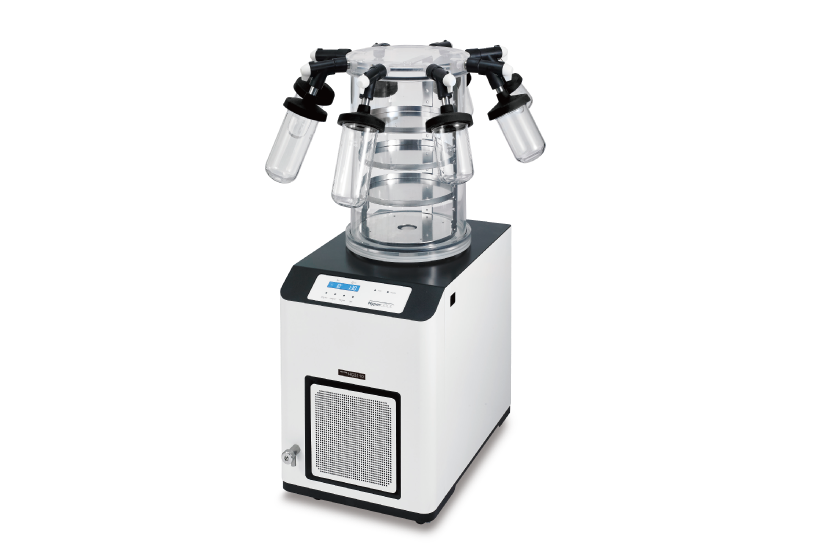

  • Up to 8 external bottles can be accommodated by the manifolds of HyperCOOL.
  • Automatic De-Vac and De-Ice functions installed

Applications of Freeze Dryer HC3110

  • Archaeological studies
  • Bacteriology
  • Banking of microorganisms, seeds
  • Biotechnology
  • Chemical synthesis
  • Drying and preservation of plants, food
  • Food preservation
  • Food processing
  • Nanotechnology
  • Pharmaceuticals
  • Drug formulation, vaccines, etc.
  • Sample prep for EM or medical investigations (microscopic studies, product recovery from dissolved samples)

Technical Specifications


Model HC3110 Ultimate chamber temp (at RT) (℃) -110
Chamber volume (L) 4 Trap (Chamber) size (Ø x L) 165 x 202
ICE Condensing capacity (kg) 3 ICE Condensing performance (kg/day) 2.5
Compressor 1/3 HP x 2 Refrigerant R507/R1150
Digital readout Time, Temperature Function Keylock, Defrost, Vacuum, Time
Power requirement (Resting, VA) 819 Power supply(V/Hz) 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional)
Dimension (W x D x H, mm) 400 x 660 x 570 Weight (kg) 72
Cat. No. Hyper-HC3110 ​(Hyper-HC3110-110)

Accessories

Why Choose HC3110?

The HC3110 Freeze Dryer combines cutting-edge freeze-drying technology with a high-capacity design, offering unmatched efficiency, precision, and reliability for both laboratory and industrial-scale operations.
