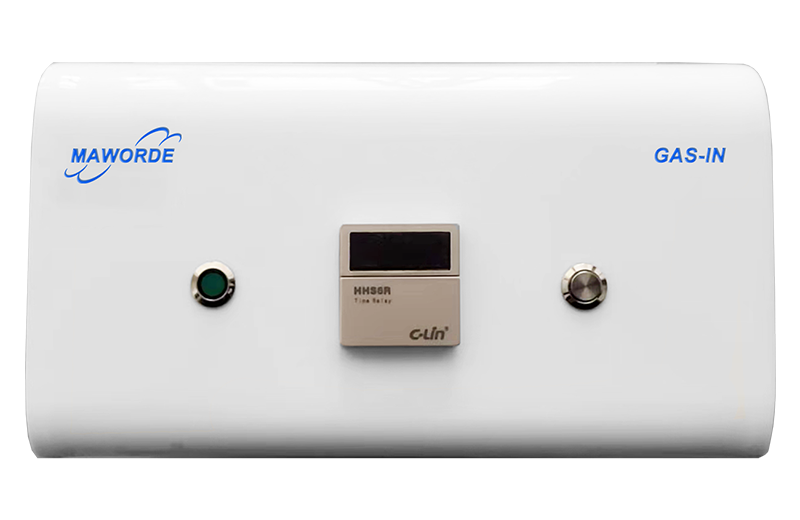

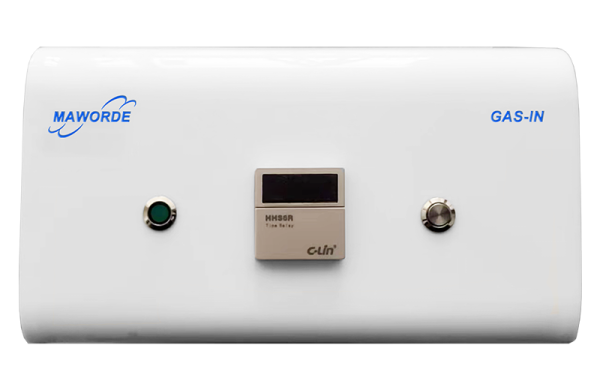

Gas Intake Control System


The Gas Intake Control System is a smart interface unit designed to manage and regulate gas flow and concentration into laboratory equipment such as hypoxia chambers, incubators, glove boxes, and tri-gas workstations.

Compare

The Gas Intake Control System is a precision-engineered solution for managing gas input into laboratory environments where strict control over atmospheric composition is essential. Whether used with hypoxia incubators, glove boxes, or gas mixing systems, this unit ensures a stable and programmable flow of gases such as CO₂, O₂, and N₂ to meet the exact needs of sensitive biological research.

Featuring real-time monitoring, the system offers fine-tuned gas regulation using high-accuracy digital sensors and mass flow controllers. It can be configured to work with a range of gas sources and integrates easily with most lab equipment via standard connections and digital interfaces.

Safety features include low-pressure alarms, gas concentration deviation alerts, and automatic shutoff in case of emergency. The system also supports programmable flow profiles and logging capabilities, allowing researchers to document conditions for reproducibility.

Compact and robust, the Gas Intake Control System is an essential component in advanced research environments focused on hypoxic or hyperoxic conditions, ensuring consistent results in every experiment.

Key Features

  • Multi-gas compatibility: CO₂, O₂, N₂

  • High-precision flow control

  • Real-time digital monitoring

  • Programmable gas profiles

  • Low-pressure and error alarms

  • USB/RS-232 data output

  • Easy integration with lab systems

  • Compact, modular design

Technical Specifications

Parameter Specification
Gas Types CO₂, O₂, N₂
Flow Control Range 0.1 – 10 L/min per channel
Flow Accuracy ±0.1 L/min
Input Pressure Range 0.2 – 0.5 MPa
Control Method Mass flow controllers
Interface Digital control panel / Touchscreen (optional)
Alarm System Low gas pressure, deviation, or power failure
Data Logging Optional USB or RS-232
Power Supply 110–240V AC, 50/60Hz
Dimensions 320 × 240 × 150 mm
Weight 6 kg
