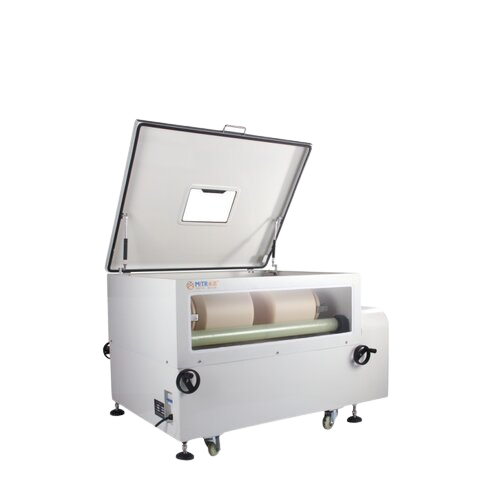

GMS5-1Z Cover Type Roller Jar Mill


The GMS5-1Z Cover Type Roller Jar Mill is a versatile grinding and mixing machine used in labs and small-scale production across various industries. It supports 1–8 stations, offering flexibility for different processing needs.

Compare

GMS5-1Z Cover Type Roller Jar Mill is widely used in electronic materials, ceramics, coatings, glass powder, fluorescent materials, non-metallic minerals, explosives, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials and other materials in the process of grinding and mixed. The light jar mill is suitable for laboratory and small batch production. Because of it flexible and convenient operation, but also in some small business production. The mixing roller jar mill is a an indispensable device for the slurry preparation process and in multiple fields. The main features can be worked in a single station, double station, four station, eight station.

Technical Specification of GMS5-1Z Cover Type Roller Jar Mill

Model GMS5-1Z GMS10-1Z GMS5-2Z GMS5-4Z GMS10-4Z GMS10-8Z
Jar Capacity 500ml-5L 500ml-10L 500ml-5L 500ml-5L 500ml-10L 500ml-5L
Roller Diameter*Length

(mm)

Φ58*288 Φ68*349 Φ58*290 Φ58*290 Φ68*(349*2) Φ68*(349*2)
Power 0.25kw 1.1kw 0.75kw 0.75kw 1.5kw 3kw
Adjusted Space By Hand / 67-230 67-280 67-280 67-230 67-302
Diameter of Jar Φ58-Φ288 Φ60-Φ280 Φ70-Φ260 Φ70-Φ260 Φ60-Φ280 Φ60-Φ280
Layers/Station 1/1 Stations 1/1 Stations 1/2 Stations 1/4 Stations 1/4 Stations 2/8 Stations
Voltage 220v/50hz 220v/50hz 220v/50hz 220v/50hz 380v/50hz 380v/50hz
Roller Speed 5-900 5-1200 5-1000 5-1000 5-1200 5-720
Transmission Mode Belt Belt Belt Belt Belt Belt
Roller Nos 2 2 2 3 3 6
