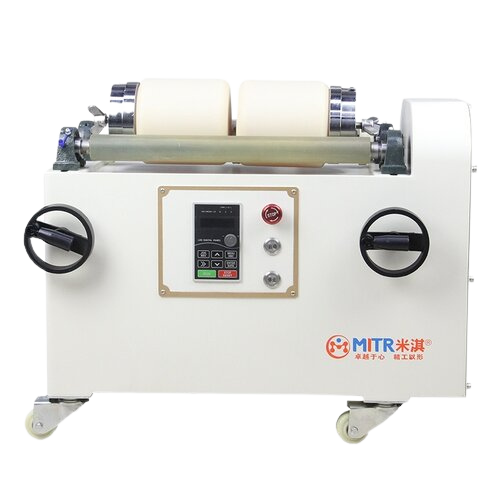

GMS5-2 Double Station Roller Jar Mill is widely used in electronic materials, ceramics, coatings, glass powder, fluorescent materials, non-metallic minerals, explosives, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials and other materials in the process of grinding and mixed. The light jar mill is suitable for laboratory and small batch production. Because of it flexible and convenient operation, but also in some small business production.
The mixing roller jar mill is a an indispensable device for the slurry preparation process and in multiple fields. The main features can be worked in a single station, double station, four station, eight station. You could choose it according to your actual application requirement. This flexibility option is one of the advantage of this machine. It could be changeable for the working station. Such as: It could be used between 1-8 stations for the 8 stations machine, not restricted by odd or balance requirements.
Technical Specification of GMS5-2 Double Station Roller Jar Mill
| Model | GMS3-2 | GMS5-2 | GMS10-2 | GMS20-2 | GMS30-2 |
| Jar Capacity | 500ml-3L | 500ml-5L | 500ml-10L | 500ml-20L | 500ml-30L |
| Roller Diameter*Length(mm) | Φ58*(250*2) | Φ58*(290*2) | Φ68*(349*2) | Φ78*(349*2) | Φ78*(425*2) |
| Power | 0.75kw | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
| Adjusted Space By Hand | 52-210 | 67-280 | 67-230 | 30-320 | 35-360 |
| Diameter of Jar | Φ50-Φ200 | Φ70-Φ260 | Φ60-Φ280 | Φ60-Φ320 | Φ60-Φ360 |
| Layers/Station | 1/2 Stations | ||||
| Roller Speed | 5-1000 | 5-1000 | 5-1200 | 5-720 | 5-720 |
| Transmission Mode | Belt | ||||
| Roller Nos | 2 | 2 | 3 | 3 | 3 |
